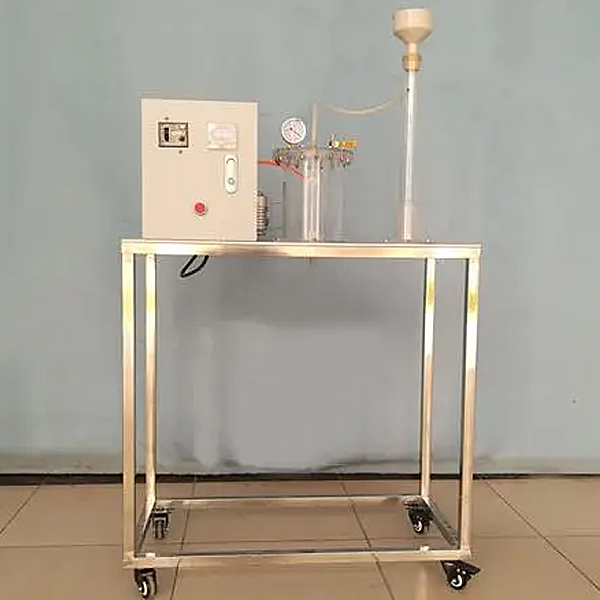

Lucky ratio blocking test device

The sludge ratio (or ratio impedance) is a comprehensive indicator of sludge dehydration performance. The greater the sludge than the resistance, the worse the dehydration performance, and the better the dehydration performance. The ratio of the active sludge in this experiment is tested with FeCl3 and AL2 (SO4) 3 as a concrete.

I hope to achieve the following goals through experiments:

1 Master the experimental method of determining sludge ratio;

2 Master the choice of concrete with a British funnel test;

3 Master the method of determining the coagulant.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 40 ℃

2. The measuring cylinder 300ml,

2. Dimensions of filter tube: 150 × 250 mm,

3. Total size of the device: 700mm × 400mm × 1200mm,

4. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 200W power, safety protection: have ground protection, leakage protection, overcurrent protection, protection,

3. M--n configuration:

1. 1 set of filter tube, transparent organic glass material, wall thickness 6mm, ø 150mm × 250mm;

2, 2 sets of 300ml meter tube, transparent organic glass material, wall thickness 5mm, ø 50mm × 300mm;

3. 2 Belya funnel, transparent organic glass material, wall thickness 5mm, ø 100mm × 100mm;

Intelligent micro -power grid tr--ning experiment system is a simulated wind power unit, solar photovolt--c power generation unit, micro -grid access and energy management screen cabinet, micro -grid energy storage and stable control screen cabinet, micro -grid distributed energy access screen cabinet, microscopic grid microscopic grid The intercourse DC load management screen cabinet, micro -grid monitoring platform, etc.

1. Simulation wind power unit

The simulation wind power unit is composed of permanent magnet wind power generation units, dragging asynchronous motors, generator brackets, motor cables, and wind speed simulation units. Wind -power generator uses a permanent magnet horizontal axis wind turbine to drag through asynchronous inverter motors to simulate the power generation of the generator at different wind speed conditions.

2. Solar photovolt--c power generation unit

Composed of photovolt--c simulator, simulating various characteristics of photovolt--c boards.

3. Micro grid access and energy management screen cabinet

Micro grid access and energy management screen cabinets are by Siemens PLC, Microex Energy Management System (EMS), Industrial Ethernet switch, AC surge protector, AC contactor, plastic shell r--l, single -phase two -way metering instrument, low -voltage line line, low -voltage line line Protector, current transformer, configuration touch screen, emergency stop button, indicator, relay, switching power supply, reset switch, conversion switch, micro break, test terminal, power cable, communication cable, wiring terminal, test terminal, etc. It m--nly completes the control, measurement and protection of the energy interaction of the micro grid and the large power grid. At the same time, the energy management system can be managed and scheduled for energy management, distributed power generation, and cross -current loads through the energy management system to achieve smooth and stable, and economic efficient operation of the micro -grid. Essence

4. Micro grid energy storage and stable control screen cabinet

Micro -grid energy storage and stable control screen cabinets are used in two -way energy storage variables, switch switches, energy storage battery packs, battery monitoring systems, DC power metering instruments, low -voltage line protectors, current transformers, shunting device, AC contactor, and interchange contactor. The indicator light, relay, reset switch, conversion switch, power cable, communication cable, wiring terminal, test terminal, etc. It m--nly completes the power storage management of the energy storage of micro grids, realizes the two -way variable flow of the DC bus and the AC bus, and provides a PCC node for isolation microne grids and the municipal power grid.
