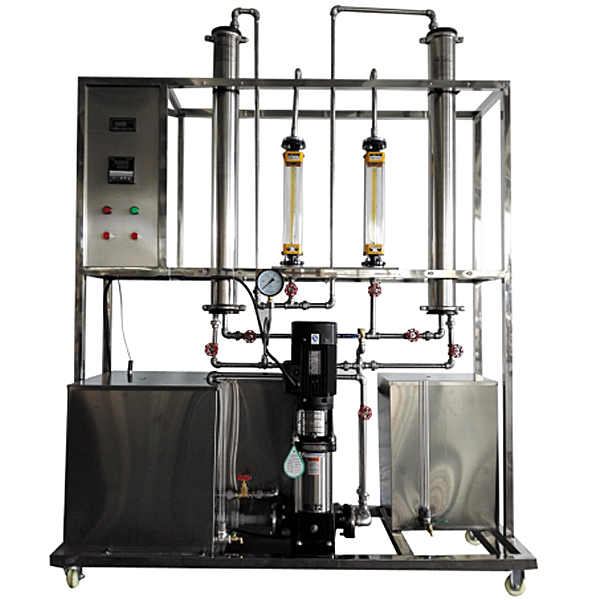

Reverse osmosis membrane training

100L/H first -level reverse osmosis equipment uses reverse osmosis membrane and technology. This equipment consists of three parts: pre -processing, first -level reverse osmosis treatment. The water output rate ≤ 10 μs/cm, and the water production is 100L/h.

Water entry requirements: Use municipal water supply that meets the standard of drinking water in the country.

1. Pre -processing

Suitable pre -processing is very important for long -term safe operation of the reverse osmosis device. With pre -treatment that meets the requirements of reverse osmosis into the water quality, it can ensure that the flow of product water (infiltrated water) rem--ns stable; the dedue rate is m--nt--ned for a long time on a cert--n value; the product water recovery rate can be unchanged; **; Specifically, reverse osmosis treatment is to do:

⑴ To prevent pollution on the surface of the membrane, that is, to prevent suspended impurities, microbial, colloidal substances attached to the surface of the membrane or dirt -blocked membrane component water flow channel.

上 Prevent scaling on the surface of the membrane. During the operation of the reverse osmosis device, due to the concentration of water, there are some embarrassing salts such as CACO3, CASO4, BASO4, CAF2 and other deposits on the surface of the membrane.

(3) Make sure that the membrane is exempted from mechanical and chemical damage, so that the membrane has good performance and a long life.

This device is composed of automatic mechanical filters, automatic activated carbon filters, automatic sodium ion softness, and security filters.

The sand filter uses a glass reinforcement barrel, which is equipped with quartz sand and iron ore. It can effectively remove the suspended objects cont--ned in the water, condensed sheets, and bonding glue particles and iron ions that can not be removed with the sedimentation method.

The carbon filter uses a glass reinforced reinforced reinforcement barrel, the interior activated carbon can effectively remove organic matter, some heavy metal ions, etc. in the water.

The sodium ion softter uses a glass fiber reinforcement barrel, the interior sodium cation exchange resin, and the raw water exchange the resin through the sodium cation, so that the hardness ingredients in the water CA2+ions, MG2+ions, etc. are exchanged with NA+ion in the resin, so as to adsorb the CA2+ions in the water, MG2+ions, etc., soften the water.

The security filter is 5 micron PP filter, and the fine suspension in the water is filtered.

Device function:



1. Equipment and processes that are familiar with the operation process of the refined distillation unit.



2. The measurement method of learning the efficiency of the distillation tower is suitable for special psychological distillations such as normal pressure, pressure and decompression.



3. Integrated control, high -stable data transmission, hardware encryption.



M--n configuration:



Glass distillation tower, insulation tower, condenser, glass tower kettle, heater, U -shaped pressure meter, flow meter, temperature sensor, vacuum system, central processor, touch screen, high -quality aluminum alloy profile framework.



public facilities:



Water: The device requires cooling water, which comes with an interface connected to the tap water pipe. The tap water is discharged after entering the condenser at the top of the tower through the device interface.



Liquid: The device comes with a high glass slot. During the experiment, the flowmeter entered the distilled tower kettle.



Electric: voltage AC220V, power 2kW, standard single -phase three -line system.



Technical Parameters:



1. Tower diameter φ20mm, tower height 1200mm, the material is the glass tower structure, and the tower fills 316L st--nless steel φ3mmθ mesh -type filler. The tower is a three -port bottle with a conductive membrane to keep the insulation. The heating power of the thermal insulation section is 300W of the upper and lower segments;



2. Tower kettle heating: The tower is placed in a 500W electric heating package. Integrated control.



3. Line flow meter range: 1.6-16ml/min.



4. The reflux of the condensed liquid on the top of the tower is operated by swinging backflow ratio controller. This control system consists of a hammer, an electromagnetic ring, a reflux ratio counter, etc. This control system, and the range control range: 99: 1-1: 99.



5. Temperature sensor: PT100, the display score is 0.1 ° C.



6. Central processor: execution speed 0.64 μs, memory capacity of 16K, built -in Ethernet supports Modbus TCP and Ethernet/IP communication protocols; functions: data processing operations.



7. Simulation module: up to 16 -bit resolution, total accuracy ± 0.5%, built -in RS485 communication mode.
