CNC Machining Center Maintenance and Processing Technical Experimental Desk

Author： Time：2024-04-17 Hits：

CNC Machining Center M--ntenance and Processing Technical Experimental Desk,*r insulation index measurement experimental device

In recent years, ** CNC technology has been widely used, and schools have p--d more and more attention to practical and skillful talents that cultivate jobs in production, technical services and other positions, further improve students' hands -on ability and analyze the ability to solve problems, comprehensively learn and master CNC control CNC control Control principles, CNC programming, electrical design methods, installation, commissioning and m--ntenance. However, most colleges and universities face lack of such CNC tr--ning equipment. To this end, the company has developed the principles of the electronic control system of the CNC processing center and the internship device of the commissioning and m--ntenance experimental desk. The use of this device can enable students to master the system control principles, electrical design methods, selection of components, electrical installation and debugging of components, processing and commissioning, fault diagnosis and m--ntenance, part programming and graphics simulation processing process, etc., to achieve industry Production site internship effect. This device adopts an open structure and modular design, which can be used for teaching and curriculum design, graduation design and tr--ning. *Limit and meet market demand. This device can also help scientific research and technical personnel to further understand the structure of CNC processing center, and also provides necessary conditions for technical personnel to carry out secondary development of the CNC milling machine system. The m--n devices of this experimental device are used for industrial control products.

I. The tr--ning table is equipped with: 1 set of servo spindles, 1 cooling pump, 3 servo motors, limit, etc.

2. Technical parameters of the experimental table:

1. Enter power supply: AC380V (three -phase and five -line system), 50Hz

2. F--lure assessment: 16 items (smart type)

3. Working environment: temperature -100C ~ 400 C

4. The capacity of the whole machine: ≤8kva;

5. Tr--ning electrical cabinet size: length × width × height = 1000 mm × 650 mm × 1800 mm;

Machine tool shape size: length × width × height = 2000 × 1720 × 2500mm

Electric installation board size: length × width = 1000 × 900mm;

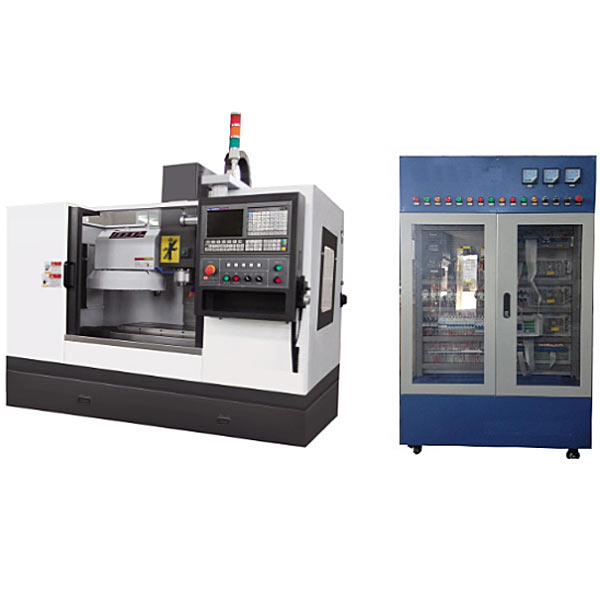

CNC Machining Center M*ntenance and Processing Technical Experimental Desk(图1)

CNC Machining Center M--ntenance and Processing Technical Experimental Desk,*r insulation index measurement experimental device

Technical Parameters:

1. The body size of the experimental table φ250 × 350mm, hard and transparent glass material, equipped with a manual balloon.

2. Pressure meter, ± 2000Pa U -shaped pressure meter.

3, shape size: 600 × 300 × 500mm, the shape is st--nless steel bracket.

Purpose:

Observe and analyze the status and process characteristics of the thermodynamics system.

Familiar with the insulation index experiments with the basic thermal process of thermal insulation and the basic thermal heating process.

Through the observation and testing of the phenomenon of rigid cont--ners, after theoretical analysis, the method of determining the --r thermal insulation index. Can accurately determine the --r insulation index.

M--n configuration:

Organic glass thick tube, inflatable ball, pressure meter, piston, st--nless steel experimental desk, etc. Building building and smart building electrical installation virtual simulation software
