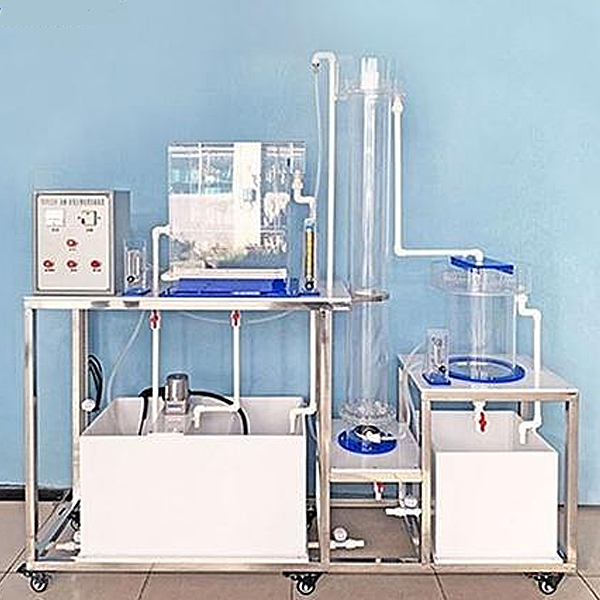

Contact oxidation pool training desk

1. Deepen the understanding of "printing and dyeing wastewater" or other wastewater.

2. Master the performance and testing technical data of this process, and use reliable data into production.

3. Make the operator improve theoretical and practical knowledge.

2. Experimental principle:

This device adopts the A/O method biochemical treatment process, which is two stages: hypoxic acidization and contact with oxidation.

After the sewage is removed from large particles and fiber -like impurities, it flows into the water tank (the large amount of water can be stirred by a fan), and then enters the acidification pool through the pump and measure the acidification pool for acidic hydrolysis. At this stage, the sewage is m--nly mass -quality. And using the characteristics of short -generation oxygen generations, strong activity, and easy reproduction and growth, the large molecular structure organic objects that are not easy to degrade into small molecules and soluble compounds, initially degraded organic matter, and at the same time completed the nitrification effect. pollute.

Contact oxidation pool is a biological treatment device based on biofilm method -based and active sludge method. Through the aeration of oxygen oxygen, the organic matter in the sewage is fully exposed to the biofilm in the pool. The degradation function further degrades the small molecules and soluble compounds into carbon dioxide and water; then enters the vertical streaming two sinking pools to remove the peeled biofilm and active sludge, so that the water can reach the standard.

3. M--n technical indicators and parameters: (Reference):

1. Environmental temperature: 5 ～ 40 ℃

2. Treatment of water: 15 ～ 30L/h

3. Water inlet: CODCR 300 ～ 500mg/L Out of Water: 30 ～ 50 mg/L

4. Water inlet: BOD5 100 ～ 250 mg/L Out of water: 15 ～ 30 mg/L

5. Water inlet: SS 100 ～ 200 mg/L Out of Water: 15 ～ 30 mg/L

6. Water inlet: pH value: 6.5 ～ 8.5 out of water: 6.5 ～ 8.5
