Agricultural machinery clutch disassembly and assembly training device

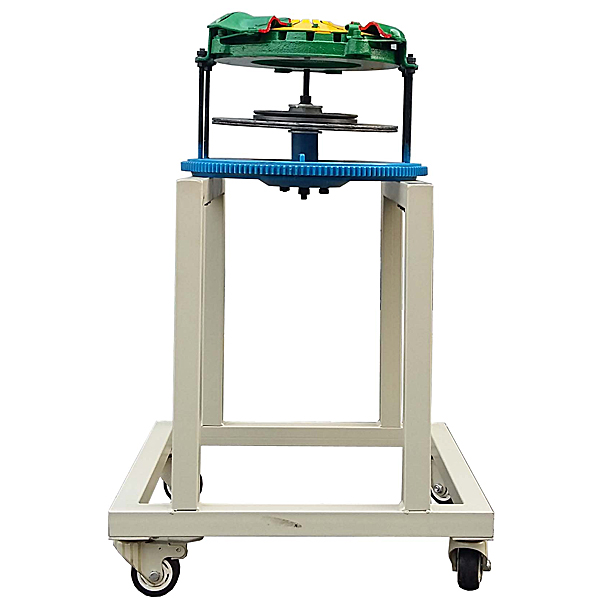

This equipment is based on the new 750P tractor clutch. It has complete components and a reasonable layout. It can fully display the internal structure and component movement of the clutch, and is suitable for teaching clutch theory and practical operations.

2. Functional features

1. Use real tractor clutch parts to fully demonstrate the internal and external structure of the tractor clutch.

2. Hand-crank the input shaft to simulate the rotation of the engine flywheel, and step on the clutch pedal to truly demonstrate the working process of the tractor clutch.

4. Technical specifications

Overall dimensions: 800×500×600mm

Working temperature: -40℃～+50℃

Color: 7032

Steel pipe: 40*40*3mm

Mobile casters: 120*80mm

Technical Parameters:

1. Input power supply: single-phase AC220V±10% 50Hz, power 500W.

2. Low-noise axial flow fan, power: 100W, flow: 300 m3/h.

3. Pitot tube flowmeter is equipped with an inclined tube micro-pressure meter to measure flow rate: measuring range -10-700pa.

4. The diameter of the --r duct in the cold and hot end speed measuring sections is Φ89mm; the fin-type (aluminum rolled tube) heat pipe heat exchanger has a size of Φ20×350mm and is made of copper tube.

5. Temperature measurement: The measurement system is equipped with an intelligent temperature control instrument (PID temperature control, accuracy ±0.2°C) and a high-precision PID voltage regulation module circuit.

6. Overall dimensions: 1000×400×800mm, with a st--nless steel bracket.
