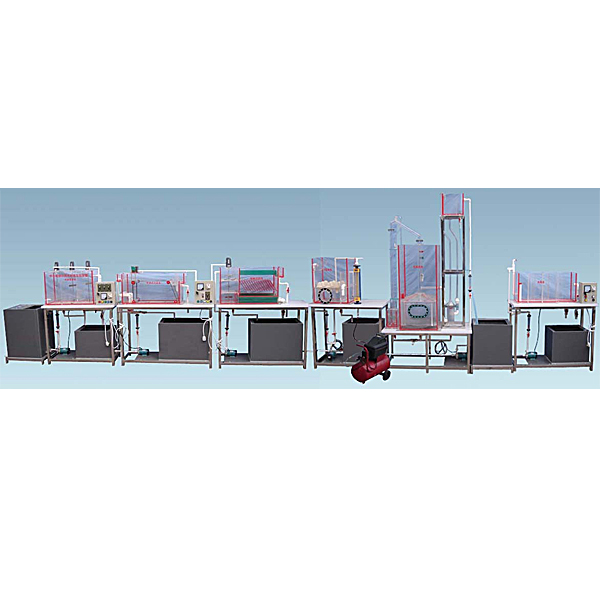

Drinking water treatment process training desk

Clear classes in water treatment usually include concrete, precipitation and filtration. The treatment objects are m--nly suspension and colloid impurities in water. After the raw water is added, the suspension of the water and the colloid in the water form a large particle flocculation, and then the gravity is separated by the sedimentation tank. The mechanical response sedimentation tank is a water purification structure with two functions: concrete and flocculation. This model is an experimental device that displays the internal structure of the flocculation reaction tank and the inclined sedimentation tank. Hope to achieve the following purpose:

1. Directly observe the organic glass device to deepen the understanding of each part of the composition;

2. Grasp the direction of water flow and operation and use of mechanical reaction tanks and sedimentation pools, and observe the condition of flocculation and precipitation.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 45 ℃

2. Treatment of water 200 L/h;

3. Device shape size: 6700mm × width 450mm × height 1900mm,

4. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 2300W power, safety protection: have ground protection, leakage protection, overcurrent protection, protection,

3. M--n configuration:

1. 1 raw water tank: white PP board, 10mm thickness, empty valve installed on the bottom plate, which is convenient for cleaning the water;

2. 1 set of raw water tank fabric stirring, 304 st--nless steel mixing paddle; (power 25W, speed 90rpm)

3. 1 set of mechanical flocculation ponds, transparent organic glass materials, 10mm thick, 500mm × width 300mm × height 500mm

4. 1 set of flat -type sedimentation tanks, transparent organic glass materials, 10mm thick, 500mm × width 300mm × height 400mm

5. 1 set of diagonal tube sedimentation tank, transparent organic glass material, 10mm thickness, 500mm × width 300mm × height 500mm

6. 1 set of V -shaped filters, transparent organic glass materials, 10mm thick, 500mm × width 400mm × height 600mm

7. 1 set of valve filters, transparent organic glass material, 10mm thick, 450mm × width 450mm × height 1500mm

8. 1 set of disinfection ponds. Transparent organic glass material, thickness 10mm, 400mm × width 300mm × height 400mm

1. Product introduction

This device is based on the real objects of Komatsu PC220 excavator's electrical control system, simulating the excavator startup system, charging system, wiper system, lighting and signal system, instrument information system, --r conditioning control system, engine speed control system, hydraulic electrical control system, hydraulic electrical control system The actual work of the system.

It is suitable for the teaching needs of school theory and m--ntenance tr--ning for the entire vehicle electrical control system of the whole machine excavator.

2. Functional characteristics

1. The real -operated full -vehicle electrical electrical control system, fully display the composition and working process of the electrical control system of the entire vehicle electrical appliance.

Connect the power supply, manipulate various electrical switches, buttons, real demonstration instrument systems, lighting systems, wiper systems, speaker systems, engine electrical systems, starting systems and charging systems, --r conditioning control systems, hydraulic electrical control system W--t for the work process of each system of electrical appliances.

2. The device panel adopts a ** aluminum -plastic plate with strikes, pollution resistance, fire prevention, and moisture -proof, and sprayed on the surface by special process; the panel prints a color circuit diagram that will never fade; And analyze the working principle of each system of electrical electrical control systems.

3. The detection terminal is installed on the panel to detect the electrical signals of the circuit components of the electrical and electrical control systems directly on the panel, such as resistor, voltage, current, frequency signals, etc.

4. The panel part of the device panel adopts a 1.5mm cold plate stamping formation structure, which is beautiful in shape.
