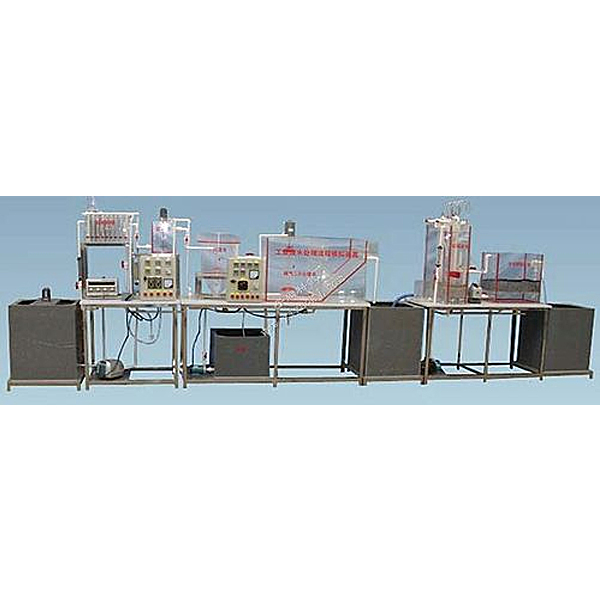

Industrial wastewater treatment process simulation experimental device

In order to understand the unit operation technology commonly used in industrial wastewater, master the processing process composed of these units, and observe the actions of wastewater, sludge and --r in the process of treatment. It is particularly experimental device for scientific research and teaching development of water treatment. The entire set of device is automatically controlled by the inflow of its wastewater, adding medicines, aeration, anti -flushing, emissions, and mud, etc. of its wastewater. Monitor each section of the water treatment effect, the whole set of equipment is used to use, can also be used separately, and each sewage pool has a development sample.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 40 ℃

2. Treatment of water: 5 ～ 15L/h

3. Design in and out of water quality range:

Inlet water BOD 400 ～ 800mg/L out of water 40 ～ 80 mg/L

COD 600 ~ 1200mg/L. Demonive water 60 ～ 120 mg/

Enter the water SS 100 ~ 300mg/L out of water 10-50 mg/L

Inlet water pH 6-9 out of water 6-9

4. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, power of 1500W, safety protection: ground protection, leakage protection, overcurrent protection

5. Total size of the device: length × width × height = 5200mm × 500mm × 1700mm

3. M--n configuration:

1. 1 original water tank: white PP plate material, 10mm thickness, 600 × 400 × 500mm, empty valve installed on the bottom plate, which is convenient for cleaning the water;

2. 1 water tank: white PP plate material, 10mm thickness, 400 × 400 × 500mm, empty valve is installed on the bottom plate, which is convenient for cleaning the water;

3. 1 set of paddles from the original water tank mixing motor, 304 st--nless steel mixing paddle; (power 25W, speed 120rpm), (including 1 tone speeder)

4. 1 set of micro -electrolytic grooves, transparent organic glass material, wall thickness 10mm, 250 × 200 × 250mm, 1 DC stabilization power supply,

Purpose:

1. Observe and analyze the impact of free convection and force ag--nst flow on the heat transfer coefficient K value in different forms of the same diameter.

2. Understand the structural characteristics of the comprehensive heat transfer performance pier and the influencing factors of the heat transfer coefficient K.

M--n configuration:

Copper heating pipes (copper pipes, blackening pipes, wing tubes, glass filament insulation pipes, sawdust thermal insulation pipes, chrome -plated pipes), regulating valve group, steam generator, hot --r curt--n fan, pressure controller and temperature Protective device, st--nless steel tables and control screens.

Technical Parameters:

1. Enter power supply: three -phase AC380V ± 10% 50Hz, power 8.0kW.

2. The diameter of the experimental copper pipe φ20mm, 500mm in length.

3. Concrete water measuring tube size φ40 × 450mm, hard and transparent glass material.

4, --r volume, --r volume 2000m3/h, power 370W.

5. Total power heating: 热 8.0kW, steam control pressure gauge: 0-0.4MPa.

6. There are three safety protection devices: safety valve, pressure gauge relay, and temperature controller on the steam generator.

7. Dimensions: 1800 × 800 × 1200mm. The shape is st--nless steel moveable bracket with a double brake wheel.
