Salvation tank experimental device

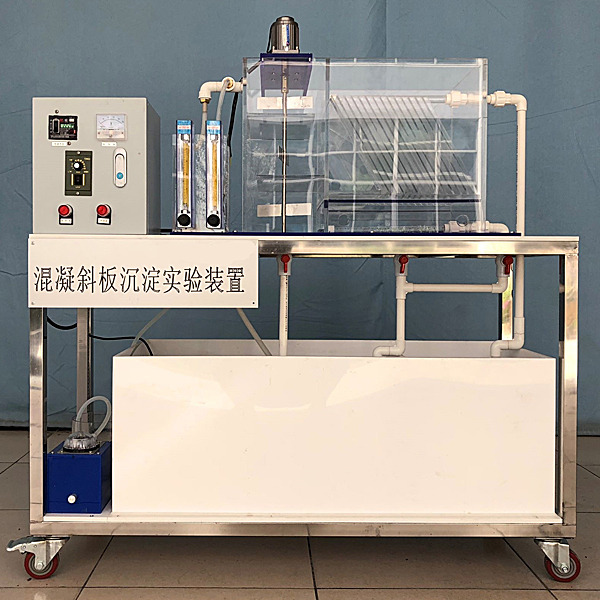

Clear classes in water treatment usually include concrete, precipitation and filtration. The treatment objects are m--nly suspension and colloid impurities in water. After the raw water is added, the suspension of the water and the colloid in the water form a large particle flocculation, and then the gravity is separated by the sedimentation tank. Mechanical reaction oblique pipe sedimentation tank is a water purification structure with two functions: concrete and precipitated. This model is a demonstration device that displays the internal structure of the mechanical reaction tank and the oblique tube sedimentation tank. Hope to achieve the following purpose:

1. Directly observe the organic glass device to deepen the understanding of each part of the composition;

2. Grasp the direction of water flow and operation and use of mechanical reaction tanks and sedimentation pools, and observe the condition of flocculation and precipitation.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 40 ℃

2. Treat water volume (adjustable): 0.5m3/h

3. Design and water turbidity: 50 ° ～ 100 °

4. Water turbidity: 10 ° ~ 20 °

5. (oblique pipe) inclusion angle is 60 °

6. Mechanical stirring speed: 40 rpm/min

7. The medicine uses refined aluminum sulfate, and the amount of increase is 10-15 mg/L

8. Device shape size: length × width × height = 1200mm × 450mm × 1500mm

9. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 370W, safety protection: ground protection, leakage protection, overcurrent protection;

2. M--n configuration:

1. The ontology is combined with two parts: mechanical reaction tank and oblique pipe sedimentation tank;

2. Group 3 in the mechanical reaction pool: transparent and organic glass material, 10mm thickness, 1 setting motor and 1 set of motor regulator

3. 1 set of oblique boards: transparent organic glass material, 6mm thickness, and 60o inclination angle;

4. 1 set of oblique pipes: inclination: 60O;
