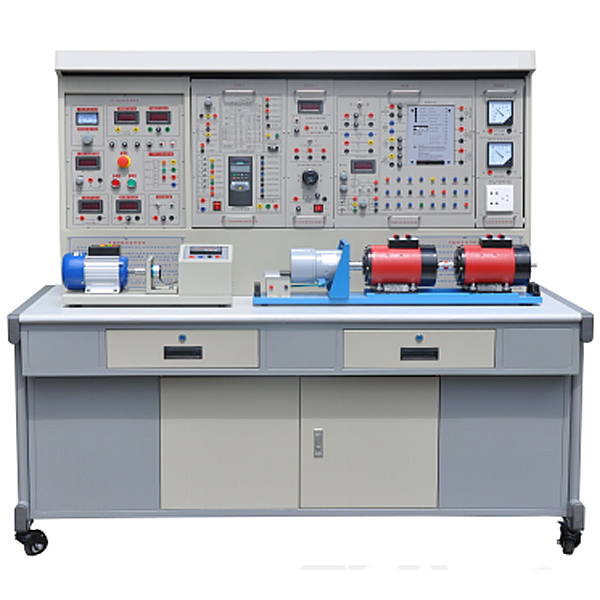

Training device of Training System Training System



The tr--ning device of cross -current speed adjustment tr--ning is based on the requirements of "Electric Power Drag Automatic Control System", "DC Specific Introduction", "AC Volcanic Speed Speed", "** M--ntenance Electrician (Traveling DC Specific Part)" textbook outline. A set of modern comprehensive motors and driving series tr--ning products launched in cooperation with colleges and universities in colleges and universities and vocational tr--ning technology. The m--n tr--ning and assessment of the tr--nees of the tr--nees of the interchange inverter and DC speed regulating device are m--nly tr--ned and evaluated the system application capabilities of AC inverters and the well -controlled motor load. Electric frequency conversion controls various typical working status; carefully designs the m--n circuit, control circuit and DC motor load of DC speed regulating device, enabling students to master the typical working status of DC motor speed regulation through tr--ning.



2. Performance indicators:



1. Work power: ~ 3N/380V/50Hz



2. The capacity of the whole machine: ≤1.5kva



3. Specification (MM): 1650 × 700 × 1580 (about).



4. Weight: 300kg



5. Working environment: temperature -10 ℃ ～ + 40 ℃ relative humidity <85%(25 ℃)



3. M--n components:



1. TS power control screen



  (1) AC power supply



Provide a three -phase 380V AC power supply. The AC power output place has an overcurrent protection technology, and the over -current and direct short circuit can be automatically protected. With a pointer AC voltage table, the three -phase grid voltage is indicated by switching the switch.



(2) Voltage power module



1) The output voltage 1 is 0 to 30V, which is continuously adjusted by multiple circle potentiometers. It has a preset over -current overload protection function. The output ** current is 2A. Each power output has a level 0.5 digital voltage meter indicator.



2) Provide DC 220V/1A DC power supply 1 to power the DC motor.

I. Overview



"Electric Power Drag Movement System Experimental Device" based on the unified textbook "Electric Electronics Technology" (5th edition of Xi'an Jiaotong University *** Zha'an) according to the unified college of colleges and universities. (3rd edition) (compiled by Chen Bo Shi of Shangh-- University) and other experimental outlines, absorb the advantages of domestic and foreign products, and fully consider the current situation and development trend of the laboratory, and carefully develop it. The structure, complete function, good reliability, and high cost performance in similar products.



2. Features



1. Strong comprehensiveness: This device integrates experimental items such as electrical electronics, semiconductor variables, cross -current speed regulation, AC variable frequency, motor control, and control theory of various types of schools in China.



2. Strong adaptability: It can meet the experimental teaching of the corresponding courses of various schools. The depth and breadth can be flexibly adjusted as needed. You need to expand functions or develop new experiments. Just add parts and never eliminate.



3. Strong complete set of settings: From the special power supply, motor and other experimental components to the experimental connection of the dedicated wires are complete, the performance and specifications of the supporting components are closely combined with the needs of the experiment.



4. Strong intuitive experimental pendies adopt a separatist structure. The component panels are significant, the graphic line is clear, each pendant task is clear, and the operation and m--ntenance are convenient.



5. Strong science: The device occupies a small area, saves experimental rooms, and reduces infrastructure investment; the supporting small motors can be specially designed to simulate the characteristics and parameters of small and medium -sized motors; Little noise, neat and beautiful, and improving the experimental environment; rich experimental content and reasonable design. In addition to deepening theoretical knowledge, design experiments can be opened in combination with actuality.
