Electronic technology training device

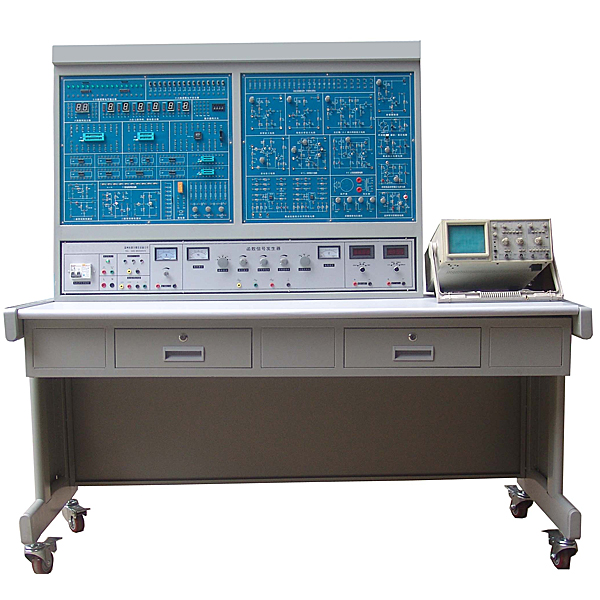

The comprehensive experimental system of electronic and electronic and electronic power dragging the comprehensive experimental system has absorbed the advantages of advanced teaching instruments at home and abroad, and fully considers the current status and future development trends of the laboratory. It has innovated in performance and structure. The layout is reasonable and easy to use. The full digital display and accuracy of the experimental instrument are highly protected by the power supply and instrument instrument involved in the experiments. At the same time, a reliable personal safety protection system is set up. **choose.

Uses: Applicable to the experimental teaching of courses such as "Digital Digital" and "Electricity" in large and high school colleges. And can expand experimental content such as "programmable controller" and "motor variable frequency control".



Simulation experiment software:



1. Electricity safety and electric shock first --d virtual simulation system (provided demonstration and copyright certificate): The software adopts a virtual screen combined with two -dimensional and three -dimensional combination to teach students the safety and first ---d method of electricity. Electric shocks, step -by -step shock, low -voltage electric shock first --d, high -voltage electric shock first --d, artificial respiratory rescue method, holding hand respiratory rescue method, chest and heart compression method, etc. Demonstration of electric shock and other principles. Low -voltage electric shock and high -voltage electrical shock teaching m--nly expl--ns how to rescue people when they are rescued by people who are in low -voltage or high -voltage electric shock. The color makes the model look like the real parts, and the picture is realistic. Through tr--ning, students can conduct tr--ning room safety education education, improve students' awareness of safety, enable students to learn some self -rescue methods, so that students can take cert--n safety measures when they encounter danger, protect themselves, and familiarize themselves with various kinds The causes of electrical accidents and practical measures to deal with electrical accidents reduce the occurrence of electrical accidents.



2. M--ntenance Electric Electrical Electric and Occupational Qualification Tr--ning Evaluation Simulation Simpage (Provide Demonstration and Copyright Certificate): Software content includes safe and electricity common sense, electrical tools, electrical articles, electrical instruments, electrical lighting circuits, motors, transformers, low -voltage electrical appliances, Electric towing, oscilloscope, low -frequency signal source, welding process, SMT technology, electronic product manufacturing process, f--lure elimination, connection, three -dimensional disassembly, shaft system disassembly (including cylindrical gear shaft system, cone gear shaft system worm shaft More than ten experiments such as), schools can choose the corresponding tr--ning module according to students' learning progress for tr--ning.

ZRDJZP-02 motor assembly skills tr--ning device This device is based on the "National Vocational Qualification Tr--ning Tutorial-Common Motor Equipment" (junior) written by the Ministry of Labor and Social Security and China Employment Tr--ning Technology Guidance Center. Tr--ning devices developed by pretender vocational tr--ning and professional skills appr--sal. The tr--ning device includes skills in the professional basic knowledge, process preparation, processing and assembly, and testing of motor equipment, which is suitable for teaching and skill tr--ning for related majors opened by higher vocational, college, and secondary vocational colleges. At the same time, the tr--ning device can also be used as an assessment device for technical schools, vocational education centers, and vocational qualification appr--sal stations (institutes).



1. Device characteristics



1. The tr--ning device is modularized to conduct skill tr--ning



2. This tr--ning device is equipped with the corresponding motor assembly tools and instruments



3. The control screen adopts a real central T--wan structure, and the measurement instrument is fixed on the control screen



4. This device has a good self -protection system. It provides excellent tr--ning equipment for realizing open tr--ning rooms



5. There are leakage voltage, leakage current protection device, and excessive name protection device, safely meet national standards



2. Technical performance



1. Input voltage: three -phase and four lines (or three -phase and five lines) ～ 380V ± 10% 50Hz



2. Working environment: The environment temperature range is -10 ~ + 40 ° C relative temperature <85%(25 ° C)



3. Device capacity: <3KVA



4. Weight: 100kg



5. Dimensions: 1300mm × 750mm × 1250mm
