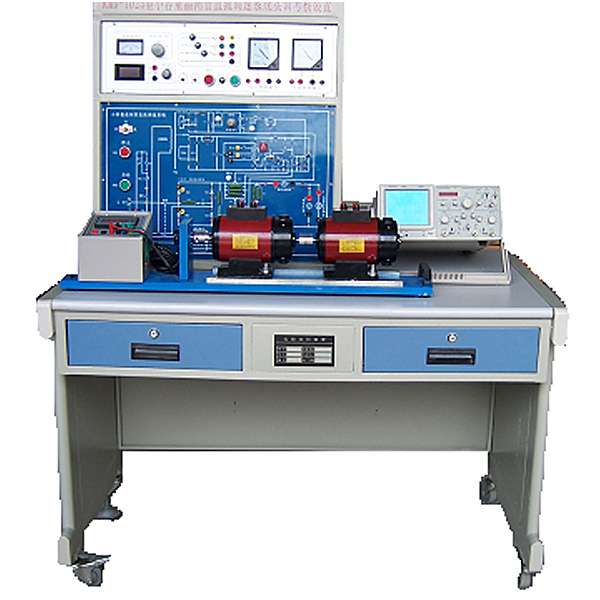

Crystal tube DC speed adjustment training device



The device uses a universal small -capacity crystal tube DC speed regulating circuit. The m--n circuit is a single -phase bridge semi -control structure. The system uses voltage negative feedback and current positive feedback control, and has a current off -departure feedback link and series micro -branch correction network. This device is in line with the "Career Standards" and the "Tr--ning Equipment Industry Standards" issued by the Ministry of Labor and Social Security of the People's Republic of China, which is suitable for various secondary vocational and technical schools. Labor tr--ning and skill appr--sal units' teaching and tr--ning and m--ntenance of electricity in the middle/** practical assessment and skill appr--sal of electricians.



This device has a expansion interface, leakage protection, and special fault setting box. It can make its own unit constitute a single -closed rim with a static and DC speed regulating control system. The fault point can be randomly set according to the requirements of teaching and assessment.



2. Technical performance



1. Enter power supply: single phase (220V+_10 % 50Hz)



2. AC power supply: single phase AC220V50Hz



3. Rectoma output voltage: DC180V



4. ** Output current: DC2A



5. Inspirational voltage: DC180V



6. Speed regulation range: D = 10



7. Static difference S is less than or equal to 10%



8. The working environment temperature range -10 ℃ to+40 ℃ The relative humidity is less than 85%(25 ° C) above sea level



9. The installation capacity is less than 1.5kva

I. Overview



The experimental device includes the power drag of the power drag system, the power drag of the AC and the DC motor, the design of the commonly used low -voltage electrical appliances and the design of the basic control circuit system. Control of machine tools. This experimental device is suitable for the skills tr--ning of courses such as "Motor and Drag the Foundation", "Factory Reveralete Control Control", "Plant Reveralete Control Control", "Principles and Application Technology", and "Variable Speed Metering Technology".



2. Device characteristics



1. Adopt a pendant structure, combined with flexible and can be used to change the experimental component to increase the experimental content, which is convenient for secondary development and functional expansion.



2. The experimental device consists of a power control screen, experimental table, experimental component, motor, motor r--l, and experimental wires.



3. Experimental devices include experimental items for some motor tests and all motor dragging and control, enabling students to understand basic theoretical knowledge and skillfully master operating skills.



3. Technical performance



1. Enter power supply: three -phase and four lines (or three -phase and five lines) ~ 380V ± 10% 50Hz



2. Working environment: temperature -10 ℃ ～+40 ℃ relative humidity <85%(25 ℃) altitude <4000m



3. Device capacity: ≤1.5kva



4. Weight: 380kg



5. Standard size: 187cm × 70cm × 160cm
