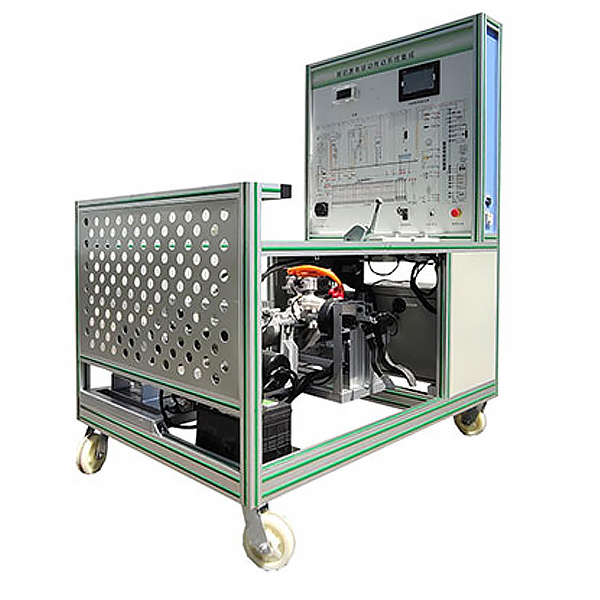

Electric vehicle electric drive transmission system training desk

Choose pure electric vehicle AC asynchronous motor and controller, smart operating simulation system, lithium battery and management system (BMS), instrument, transmission system, electronic vacuum suppression system, simulation loading controller, loader, teaching board, etc. The experimental tr--ning table of device production can complete the experimental tr--ning content related to the power -driven system. Suitable for the disassembly and m--ntenance, structure and principle cognition, system operation, functional dynamic demonstration, f--lure detection and diagnosis of system theories and m--ntenance tr--ning for various institutions such as electric drive transmission systems, lithium batteries and management systems (BMS) Teaching needs.

2. Functional characteristics

1. Lithium battery and management system (BMS): Power battery parameters perform real -time monitoring, fault diagnosis, SOC estimation, short -circuit protection, insulation detection, charging control, equilibrium and other functions. Charger and other information interaction.

2. Pure electric vehicle power battery packs (power battery: single iron phosphate battery 3.2V50AH, a total of 24 sections), the battery management system includes: voltage and temperature and current collection module, m--n control module, etc. The network communicates with other modules to intuitively understand the power battery PACK technology.

3. Power battery packs, Hall current sensors, charging relay, discharge relay, pre -charging relay, total positive relay, and total negative relay are equipped with detection ports, which can detect electrical signals of system circuit components in real time, such as resistor, voltage, current, current, current , Frequency signal, etc.

4.BMS battery management system with passive equilibrium functions, with switch control protection (single disconnection, short circuit, overvoltage, under pressure, overcurrent, over -temperature), communicate with the vehicle charger CAN, control the vehicle charging engine through BMS , Estimate SOC (Loading Status) and so on.

1. Product introduction

The device is based on the physical object of the central spring -type clutch. The components are complete and the layout is reasonable. It can fully display the internal structure and component movement of the central spring -type clutch, which is suitable for the teaching needs of the central spring -type clutch theory and practice.

2. Functional characteristics

1. Use a real central spring -type clutch component to fully display the internal and external structure of the central spring -type clutch.

2. Shake the input shaft of the hand, simulate the engine flywheel rotation, step down the clutch pedal, and truly demonstrate the working process of the central spring -type clutch.

3. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D, which can choose 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries, and institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

The turbine sn--l tapered gear reducer: automatically play the assembly content after entering the software. Each step in the video has text description

Second -level unfolding cylindrical gear reducer: After entering the software, use the video to play content in the form of video. The video content should include: the name of the parts (scanning the QR code can see the part of the parts), the disassembly presentation (including disassembly, assembly), virtual disassembly Installation (including overall, low -speed shaft, mid -speed axis, high -speed shaft, box cover, box seat)
