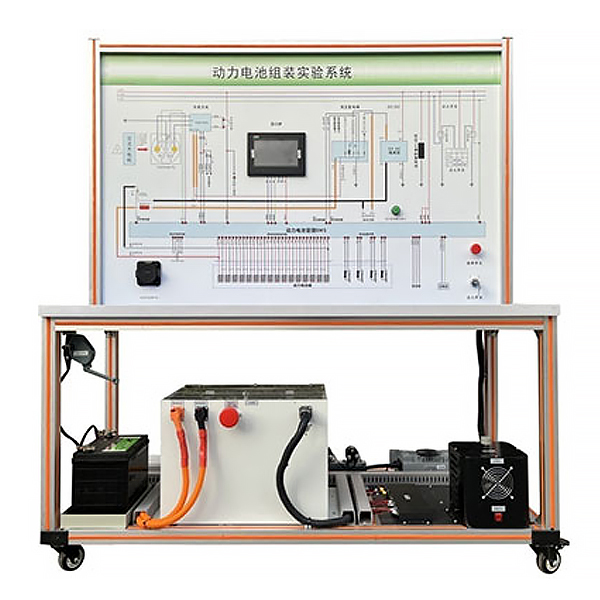

Power battery package PACK training desk

Meet battery assembly and debugging capabilities, meet the assembly and debugging of power batteries, assembly and measurement of monomer batteries, battery module packaging and measurement, assembly and measurement of DC charging interface, and assembly and measurement of AC charging interface. Meet the following tr--ning items: single voltage test. Single internal resistance test. Single battery gear. Module disassembling, coding, debugging and detection. Demolition, commissioning and detection of power batteries. Reacters and measurement of contactor. Dedicated charging interface disassembly. Manual m--ntenance switch disassembled. Disassemble and measure current sensor. Pre -resistance disassembly and measurement. Disassembly of high -pressure connectors. Thermal management system gas tight test. PACK gas tight detection. BMS installation. Charging and discharge test. DC charging interface assembly and charging debugging. Disassembly of high and low voltage cable beam. Other attachment disassembly. It can be tested with AC charging pile installation platforms and driving motor installation desktops to verify each other.

2. M--n technical requirements

(1) Dynamic battery installation platform metal tablet, the overall size of the equipment (length*width*height): about 1630*780*1730mm

(2) Power battery

① The working voltage range of the battery management system (BMS): DC 9 ～ 36V. Work temperature range: -40 ℃ ～ 85 ℃. Storage temperature range: -40 ℃ ～ 125 ℃. Humidity range (%): 0-95%. Single battery voltage detection range: 0 ～ 5V. Single battery voltage sampling accuracy: ≤5mv. Single battery voltage sampling frequency: ≤100ms. Total voltage detection accuracy: <1%. Temperature measurement range: -40 ~ 125 ° C. Temperature detection accuracy: ± 1 ℃. Current detection range: ≤75A.

② Car charger. Altitude: ≤3000m full load output. Storage environment temperature: -40 ℃ ～ 80 ℃. Working environment temperature: -20 ℃ ～ 55 ℃ Normal work; reduction output from 55 ℃ ～ 75 ℃. Relative humidity: 0-95%. Installation environment: No violent vibration and impact. Dust environment: no conductive or explosive dust, no corrosive metals and vapor or vapor that destroys insulation. Specification model: 75V 10A. Input voltage: ≥220V AC. Working frequency: 50/60Hz. CC, CP function: Yes. Output voltage: ≥75V DC. Output current: ≤10A. Output power: ≥800W. Stabilization accuracy: ≤1%. Stability accuracy: ≤1%. Voltage ripple (P-P): ≤1%. Work efficiency: ≥0.93. Enter overvoltage protection value: higher than 260V AC protection shutdown

1. Product introduction

The device is based on the car ABS/ASR/ESP braking system, equipped with the ABS/ASR/ESP system working schematic diagram to truly display the working process of ABS/ASR/ESP system during emergency braking.

F--lure teaching functions such as structure composition and action demonstration of ABS/ASR/ESP braking system.

Suitable for the teaching needs of theoretical teaching and detection and m--ntenance tr--ning for car ABS/ASR/ESP braking system.



2. Functional characteristics

1. Based on the real car ABS/ASR/ESP braking system, it fully displays the composition of the ABS/ASR/ESP brake system.

2. From the three -phase asynchronous motor, drive the front and rear axles to rotate to simulate the car. When stepping on the brake pedal urgently, the ABS/ASR/ESP system began to work, and the brake discs kept a small amount of rotation. The brake pedal could feel constantly playing feet, and truly demonstrated the work process of the car ABS/ASR/ESP system.

3. The tr--ning countertop is p--nted with color UV tablet inkjet circuit diagrams and hydraulic pipe diagrams. Students can intuitively control the circuit diagram and ABS/ASR/ESP braking system, understand and analyze the working principle of the control system.

4. Detective terminals are installed on the tr--ning table panel. You can directly detect the electrical signals of each sensor and control the foot of the unit, such as resistor, voltage, current, frequency signal, etc.

5. The tr--ning desk is installed with a pressure gauge, which can display the hydraulic changes of the braking total pump and the four braking split pumps in real time.
