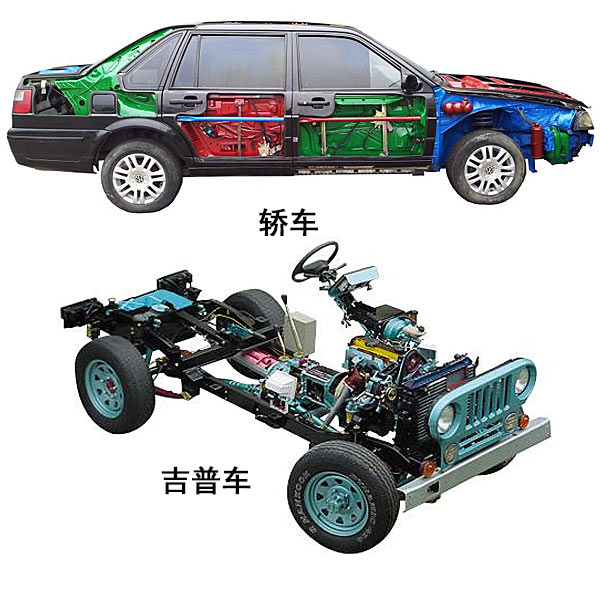

Automobile entire car anatomy physical experimental device

This tr--ning system is based on the original automotive assembly of the original car, anatomical key parts of each system, and different colors of the section, highlighting the structure level, and the principles and structures of the various systems can be displayed.

Applicable to the tr--ning needs of all types of institutions and tr--ning institutions for the structure theory and m--ntenance tr--ning of various systems of automobiles.



two. Structure and composition

An anatomical automotive assembly, operational manual and other accessories.



three. Features

1. The principles and structure display of each system of the car.

2. Reserve the function of the original car electrical appliances (engine/transmission/electrical operating parts to ret--n the original car function).

3. The body electrical system is working normally, and dynamically demonstrates the work conditions of the body's electrical appliance system.

4. The anatomy of the --rbag and the front and rear suspension position on the right side can be observed. The suspension can be observed, the section surface is applied to different colors, and the structural level can be highlighted.

5. The anatomical dissection spare tires and the front and rear window positions on the right can observe the window mechanism. Different colors are applied to the section, highlighting the structural level.

6. Install the flash bar with anatomical parts, and use a circular flow LED (different parts are distinguished by different colors).

7. Keep the original car power and chassis and other systems, cars can drive normally.

8. The car can display data such as oil pressure and vacuum in real time, and with a test port, which can test vehicle electrical data.

9. Install the fault simulation device.

I. Overview

The YD series has a very high -speed three -phase asynchronous motor is a new type of variable very fast three -phase asynchronous motor developed on the basis of the Y series. It has the advantages of high efficiency, high starting torque, low noise, and small vibration. Because the series of motors can change the speed of the motor by changing the pole p--r, thereby achieving a reasonable matching of the power and simplifying the transmission system, so it is widely used in textiles, printing and dyeing, chemical industry and other industries.

"AC Electric Tr--ning Cabinet" in AC Ultimate Rolening System "is the needs of electrician and electrical technicians in the installation, commissioning, and m--ntenance of various industries in the society. The skills tr--ning developed by courses such as technology "," Factory Electrical Control ", and" Motor Drag and Control "is the tr--ning and assessment equipment of relevant units such as various professional education centers, tr--ning institutions, and vocational appr--sal stations (institutions). Tr--ning equipment for electrical related majors in various vocational colleges.

Two and characteristic

1. The standard power distribution cabinet is used as the m--n cabinet, which controls the use of reasonable, small area, and beautiful appearance.

2. Control cabinet's device selection, installation, wiring and other strict accordance with the "electrical equipment safety design guidance", "insulation coordination of equipment in the low -voltage system", "the color of the wire in the set set of electronics" Design of relevant national standards such as rotation direction ".

3. The devices used are well -known brands at home and abroad, and the quality of the product is guaranteed.

4. Use YD100L-6/4/2 three-phase and three-speed motor as the control object to simulate the motor starting and control, which is close to the industrial site.

5. Provide various protection functions, which is safe and reliable in tr--ning.

3. Technical performance

1. Input voltage: three -phase and four lines (or three -phase and five lines) ~ 380V ± 10% 50Hz

2. Working environment: temperature -5 ℃ ～+40 ℃ relative humidity <85%(25 ℃) altitude <2000M

3. Device capacity: <10kva
