Electric window/central control door lock/rear vision training device

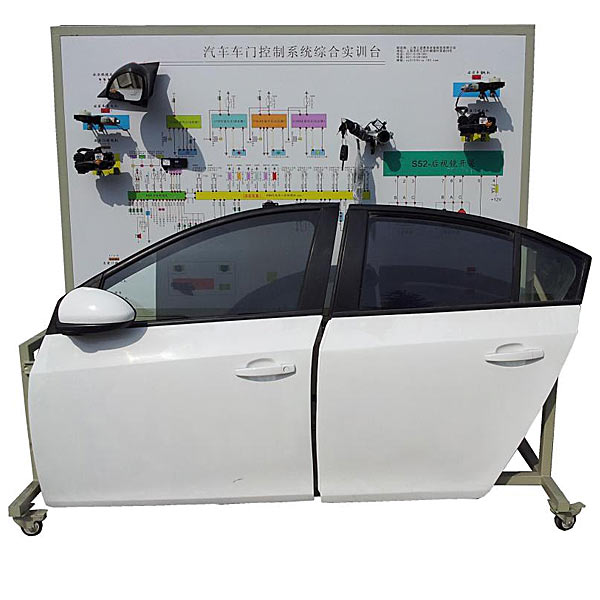

      The device is based on the real objects of the car door of the car driving side, which fully demonstrates the structure and work process of the car door control system.

Applicable to the teaching needs of the theory and m--ntenance tr--ning of automotive door control systems and tr--ning institutions for high -level vocational and technical colleges, ordinary education colleges and tr--ning institutions.

2. Functional characteristics

1. Real and operating car door control system, fully display the composition of the automotive rearview mirror system, the center -control door lock system, the electric window system and the anti -theft system.

2. Manipulate the rearview mirror switch, central control door lock switch and electric window switch, which can truly demonstrate the work process of automotive rearview mirror system, center -control door lock system, electric window system and anti -theft system.

3. The tr--ning table panel adopts a 4mm thick corrosion resistance, strike, pollution resistance, fire prevention, and moisture -proof ** aluminum -plastic panels. The surface is sprayed with primer p--nting by special crafts; ; Students can intuitively control the circuit diagram and real objects, to understand and analyze the working principles of automotive rearview mirror system, center -control door lock system, electric window system and anti -theft system.

4. Detective terminals are installed on the tr--ning table panel. You can directly detect the electrical signals of the automotive rearview mirror system, the central control door lock system, the electric window system and the anti -theft system, such as resistance, voltage, current, Frequency signals, etc.

5. The tr--ning desk provides a working platform for learning door system disassembly.

The tr--ning table panel uses a 1.5mm cold plate stamping and forming structure, which is beautiful in appearance.

6. The tr--ning table uses a normal 220V AC power supply, which is converted into a 12V DC power supply through the internal circuit transformer transformer. No battery is required to reduce the trouble of charging. The 12V DC power supply has a short circuit function.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

1. System summary

The system combines the current anti -theft in the security market. It has a wired alarm and system cloth withdrawal function. The system is mature and stable, and the tr--ning content is rich. The system also includes two linkage devices: telephone dial -dial -dial -up and sound light alarm, which provides a good teaching and research platform for tr--ning teaching and research anti -theft alarm technology.

Second, systemic characteristics

1. The system combines the security alarm system of anti -theft in the current security market;

2. This system cont--ns various types of alarm detectors;

3. The upper machine software can realize a cert--n cloth retracement function and achieve group management.
