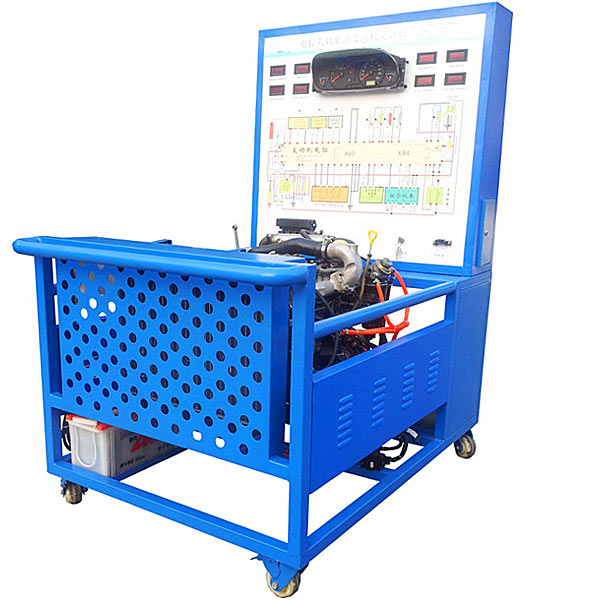

High -voltage co -rail diesel engine maintenance training desk

The device is based on an electronic control high -voltage co -r--l diesel engine. It can perform the structure and working process of the engine of the engine to start, accelerate, and decelerates the work conditions.

It is suitable for the school's teaching needs for electronic control high -voltage co -r--l engine and m--ntenance tr--ning.

2. Functional characteristics

1. The real -operated electrical control high -voltage common r--l diesel engine (acceleration/deceleration/idle work condition is normal), and fully display the structure and working process of the electronic control high -voltage r--l diesel engine.

2. The tr--ning table panel adopts the 4mm thick corrosion resistance, strike, pollution resistance, fire prevention, and moisture -proof ** aluminum -plastic panels. The surface is sprayed with primer p--nting by special processes; Intuitive control circuit diagrams and electronic control high -voltage co -r--l diesel engines, understand and analyze the working principle of the control system.

3. The tr--ning terminal is installed on the panel, and the electrical signals that can detect each sensor, actuator, and engine control unit pipe foot can be detected directly on the panel, such as resistors, voltage, current, frequency signals, etc.

4. The tr--ning countertop is installed with a car instrument, which can display the changes in the engine speed, water temperature, oil pressure lamp, charging indicator, and electrical control system fault indicator light in real time.

5. There is a diagnostic seat installation of the tr--ning desk, which can be connected to a dedicated or universal car decoder to read the engine electrical control system to read the fault code, clear the fault code, and the data flow.

6. The tr--ning table is equipped with a throttle control device, which can be convenient to accelerate the engine.

7. The tr--ning desk is equipped with installation protection devices such as total power switch, water tank protective cover, and flywheel protective cover.

8. The device detection panel is equipped with a 20cm steel table on the front base in front, which is convenient for placing data and detecting instruments.
