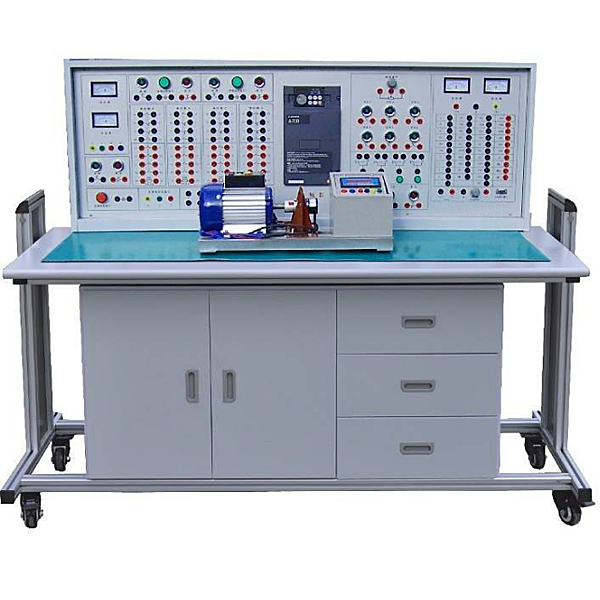

Inverter speed regulation system experimental device



This device uses a typical high-performance, multi-function FR-A740 variable frequency frequency frequency speed regulator (380V, 0.75kW) as the host, and the outer pulse coder electrical mechanism speed measurement system. The entire device can complete all functional experiments of the opening and closed -loop system and the frequency conversion speed. The open structure allows students to comprehensively learn and master the structure principles of frequency adjustment speed, detection and m--ntenance. It is suitable for large and high school colleges, vocational schools, and technical school automation professional supporting teaching and open experiments



2. Technical parameters of the experimental table:



1. Input power supply: AC380V ± 5 % 50Hz 2. Rating current: 3A

3. Environmental temperature: -5 ℃ ～ 40 ℃ 4, appearance size: 1600 × 700 × 1250mm

5. Relative humidity: ≤90 % (25 ° C) 6. Variables: FR-A740-0.75K



3. Product composition:



1. Experimental desk: Install all electrical components, instruments, switches, etc. of the experiment, to make the overall solid, beautiful and practical, and convenient experiments.



2. Experimental load motor: Use three -phase different step motors.



3. Experimental wires: All the plug -in plug -in uses a secure type plug, which provides very high security for students' experiments. The experimental plug is convenient and fast.



4. 1 p--r of motor r--ls and photoelectric encoders



5. Experimental table: one and two.

Introduction to medical electronic engineering practice tr--ning platform

Medical electronics engineering practice tr--ning platform is m--nly for "Single Micrometer Technology", "Medical Electronic Instrument Design", "Medical Electronic Instrument Design Curriculum Design", "C ++ -based Object -oriented Program Design" , "C# -based Object -oriented Programming" and other courses, allow students to quickly master various practical skills based on these platforms, such as medical electronic instrument design skills, single -chip computer program design skills, base C ++ object -oriented programming design design Skills, Java -based objective programming skills, C# -based objective programming skills, hardware circuit design skills, etc.

This experimental platform can complete the basic experiments of single -chip microcomputers, such as running lamp design experiments, independent keys experiments, matrix keyboard scanning experiments, seven -segment digital tube display experiments, touch screen experiments, LCD screen display experiments, voice broadcast experiments, serial communication experiments, Bluetooth communication experiments, Bluetooth communication experiments, Bluetooth Bluetooth Module communication experiments, WIFI module communication experiments, DC motor experiments, steering engine experiments, AC motor experiments, touch button experiments, and medical electronic professional experiments, such as body temperature detection and display experiments, pulse wave detection and display experiments, blood pressure monitoring, blood pressure monitoring Experiment, respiratory monitoring experiment, ECG signal detection and display experiment.

The human physiological parameter monitoring system can also be independently used in object -oriented programming courses, such as "MFC -based object -oriented programming", "WinForm -based object -oriented programming" and "Java -based object -oriented programming", which can be carried out. Experiments include body temperature testing and display experiments, pulse wave detection and display experiments, blood pressure monitoring experiments, respiratory monitoring experiments, ECG signal detection and display experiments, and monitoring meter interactive experiments.

The platform has three major characteristics:

1. Cross -course: Medical Electronic Engineering Practice Tr--ning Platform and its supporting human physiological parameter monitoring systems are targeted at multiple courses, such as "Single Machine Technology", "Medical Electronic Instrument Design", "Medical Electronic Instrument Design Course Design", "Base C ++ Object -oriented programming design "," Java -based object -oriented programming "," C# -based object -oriented program design ", etc.
