Simulation motor training desk



The transformer model is a traditional teaching --d product. Based on many years of production, it continuously improved and explored, and referred to advanced foreign technology technology. Using high -precision processing technology to overcome the characteristics of transparent organic glass has the characteristics of thermoplasticity, easy deformation and mechanical strength. , Once formed. Makes the motor model transparent, exquisite, exquisite, realistic, and can be used to drive a demonstration. The focus of highlighting the special teaching requirements of "transparent, demonstration". While designing products, the company focuses on theoretical basis and demonstration. The series of motors and transformer models are used in the same shape. A variety of organic colored facilities are made. The internal structures are produced according to the principle of relevant motor. Effect.

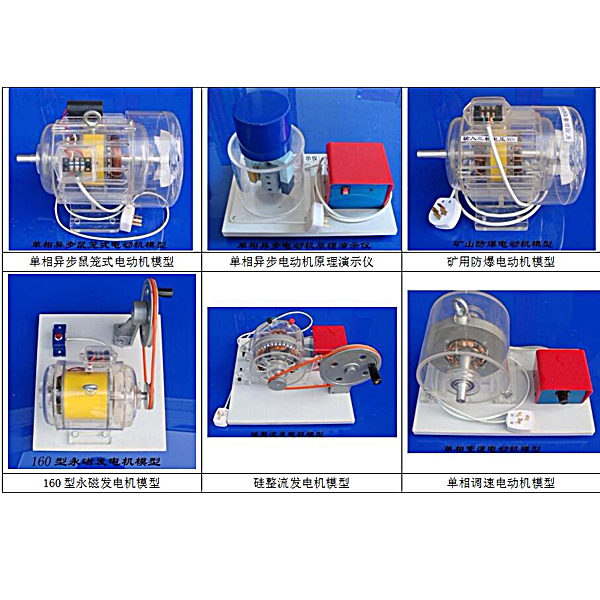

List and technical parameters



Serial number, name, specification, technical parameter

ZRMX-MX1, three-phase winding asynchronous motor model, 260 × 180 × 220 (mm), three-phase winding asynchronous motor model, enter three-phase low voltage 380V, speed 500 to 800 rpm per minute

ZRMX-MX2, three-phase rat cage-type motor model, 280 × 200 × 230 (mm), three-phase asynchronous mouse cage-type motor model, enter three-phase voltage 380V, speed 600 rpm per minute, 600 rpm per minute

ZRMX-MX3, single-phase asynchronous mouse cage-type motor model, 280 × 200 × 230 (mm), single-phase asynchronous rat cage electric motor model, input voltage single-phase voltage 220V, speed 600 rpm per minute-1000 rpm

ZRMX-MX4, DC servo motor model, 350 × 220 × 230 (mm), DC servo motor model, input DC 220V, speed 500 rpm per minute-800 rpm per minute

ZRMX-MX5, single-phase asynchronous motor principles, 350 × 220 × 230 (mm), single-phase asynchronous motor principle demonstrator, input single phase 220V, speed per minute 8 rpm

ZRMX-MX6, three-phase synchronous motor model, 220 × 160 × 230 (mm), three-phase synchronous motor model, enter three-phase voltage 380V, speed 500 rpm per minute-800 rpm per minute

ZRMX-MX7, X165mm three-phase step-by-motivation model, 320 × 220 × 270 (mm), three-phase step-by-motivation model, input power supply 220V, speed 8 rpm per minute per minute

ZRMX-MX8, DC generator model, 350 × 320 × 260 (mm), DC generator model, output voltage 6.3V-3V

ZRMX-MX9, three-phase AC generator model, 350 × 320 × 260 (mm), input AC voltage 220V, emitting voltage 3V

ZRMX-MX10, mineral explosion-proof motor model, 280 × 200 × 230 (mm), mineral explosion-proof motor model, enter three-phase voltage 380V, speed 500 rpm per minute-800 rpm per minute

ZRMX-MX11, type 160 permanent magnet generator model, 350 × 320 × 260 (mm), 160 permanent magnet generator model, output 6.3V

1. System function summary

The Internet of Things smart home and wiring tr--ning system adopts a new generation of IP+wireless smart home network system, m--nly including smart hosting, IP smart gateway, monitoring equipment, and being accused (smart security, smart electrical appliances, smart lighting, smart curt--ns, etc.), etc.), etc.) In the part, smart hosting and IP intelligent gateway and monitoring devices perform two -way communication through IP. IP intelligent gateway and accused devices perform two -way communication between wireless (WIFI or RF recognition (RFID)). At the same time Control distance, form a unique smart home IP+wireless control network.

The system can remotely control the lighting, curt--ns, home appliances, etc. through mobile phones or computers. At the same time, you can also view environmental parameters such as home temperature and humidity. You can see the situation at home in real time. Equipment such as human sensing switch, combustible gas sensor, smoke sensor and other equipment can monitor the safety status of the home in real time. The system also includes access control systems, visible intercom, wireless sirens, etc. to form a security system.

Second, system design

The system model adopts a room -style structure design. A total of three typical households in living room, bedroom, and kitchen are designed. Each room has different equipment according to actual needs. Among them, the living room m--nly includes access control system, visual intercom system, smart home appliance control system (including electric curt--ns), network camera monitoring system, security alarm system, lighting system (including chandeliers (including chandeliers lamps , Floor lamp, wall lamp, etc.), environmental monitoring system (including infrared sensor, temperature and humidity sensor, etc.), network management system (including router, switch, mixer frame, voice and network information point, etc.); It is composed of lighting scenario control system, security alarm system, smart home appliance control system (--r conditioning and TV, etc.), background music, etc. The kitchen m--nly includes the gas leakage alarm system and the smart home appliance control system. The entire system cont--ns centralized control and remote Web control, and all the above systems are not independent, but are connected with other systems, integrate into a unified whole, and respond to each other to achieve a true smart home control system.
