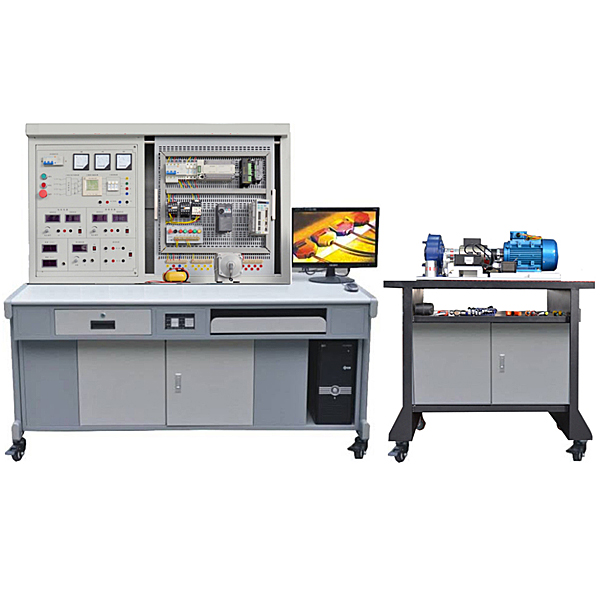

Motor assembly and operation detection training device



This device is a new type of motor experimental desk with experimental functions such as three -phase asynchronous motor, step motor, and servo motor. In addition, digital detection methods are adopted to more intuitively reflect the process of motor control, strengthening a variety of motor production and electrical control (drag) methods, which is a tr--ning assessment equipment that meets multi -level teaching. Suitable for teaching and skill tr--ning for related majors opened by high vocational, college, and secondary vocational colleges. At the same time, the tr--ning device can also be used as an assessment device for technical schools, vocational education centers, and vocational qualification appr--sal stations.



2. Device characteristics



1. Strong security: The output and measuring instruments of each power supply have reliable protection functions, and have a complete and reliable personal safety protection system.



2. Strong adaptability: It can meet the experimental teaching of the corresponding courses of various schools. The depth and breadth can be flexibly adjusted as needed. The popularization and improvement can be organically combined according to the process of teaching.



3. Strong scientificity: Adopting high -precision intelligent data measurement, the experimental instrument adopts a variety of forms such as pointer, digital type, etc., and the measurement data accuracy is high. It can also be used to complete the remote monitoring of the experimental device through the configuration of the computer to complete the computer configuration through the configuration software.



4. Strong comprehensiveness: At the same time, a variety of AC and DC motors can be provided to complete a variety of motor control experiments on one experimental platform. Save experimental rooms, installation is convenient and flexible.



5. Strong supportability: From the instrumentation, special power supply, motor assembly tools to experimental connection dedicated wires, etc., all are complete. The performance of the instrument, the performance, and specifications of the instrument, the performance, and specifications of the components are closely combined with the needs of the experiment.



3. Technical performance



1. Enter power supply: three -phase and four lines (or three -phase and five lines) ～ 380V ± 10% 50Hz



2. The entire machine power: ≤1 kVA



3. Working environment: temperature -10 ℃ ～+40 ℃ relative humidity <85%(25 ℃) altitude <4000m



4. Dimensions: Expand: 1850mm × 700mm × 1650mm (long × width × height)



5, safety protection: have leakage voltage, leakage current protection device, and safely meet national standards

1. Product overview

Elevator safety equipment recognition tr--ning device can printed various components of elevator safety devices on the table with color physical maps, and design the corresponding selection button. So as to achieve the purpose of teaching, tr--ning, and assessment, through tr--ning, students can quickly identify various components in elevator safety devices to understand their role. Teachers can use the identification and assessment of safety installation components according to the needs of teaching. It is very suitable for the use of elevator -related majors opened by high vocational, college, and secondary vocational colleges. , Vocational Education Center and Vocational Qualification Appr--sal Station conduct elevator vocational skills tr--ning and skill appr--sal and evaluation and use.

2. Equipment structure characteristics

Elevator safety system recognition tr--ning device consists of two parts: tr--ning table and tr--ning desk.

(1) Tr--ning table

1. There are two lock drawers in the experimental table to store real -time tr--ning tools and equipment and tr--ning materials. There is a double -opening locker with lock -locking function in the lower part. The wheels (stable and reliable when braking the wheel, flexible exercise in the unlocking state, and facilitating tr--ning, handling or movement).

2. The m--n part of the tr--ning table adopts a full steel structure, the steel plate sub -light spray plastic, beautiful and durable. The desktop uses a high -density medium fiber plate, the operation edges are thickened, the edges are thickened and the small R shaped polishing treatment. ; Desktop height adopts a suitable height that meets the principles of ergonomics: 800mm.

(2) Tr--ning desk

1. The m--n part of the tr--ning table adopts a full steel structure, the steel plate sub -light is sprayed, and the beautiful and durable. The countertop is printed with aluminum -plastic plates. , Intelligent credit card starting circuit board, intelligent assessment circuit kit, tomorrow's light lamp, various buttons and security cord columns.

2. The real tr--ner printed the safety device components in the form of a color physical map on the table, and designed the corresponding selection button. The teacher set up a f--lure and selects questions for students. Knowledge is free to choose exercises, and there will be corresponding information prompts to answer correctly or errors. It can be used as an assessment and use of the basic knowledge of the student elevator.

3. The real tr--ning desk is used by the key emergency opening method, which is convenient for teachers to manage tr--ning equipment, prevent unpopular operating equipment from being operated at will, and effectively protect the safety of students' personal and equipment.
