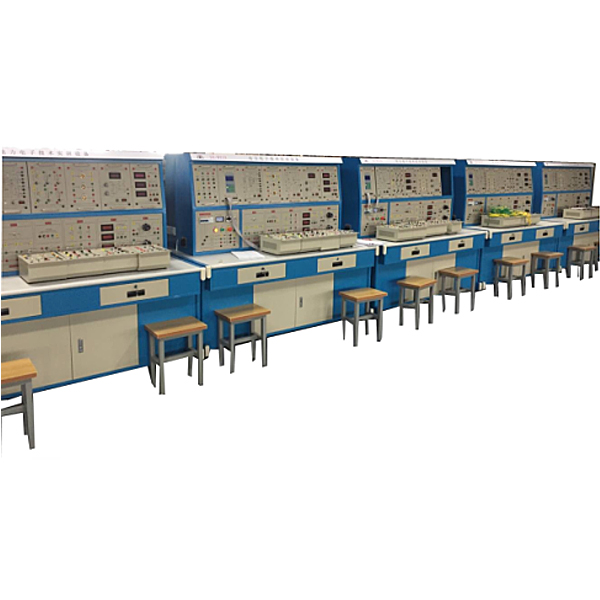

Electrical Electronic Technology Experimental Training Device



"Electronic Electronic Technology Experiment, Tr--ning Device" is a course of experimental tr--ning outlines such as "Electric Electronics Technology" and "Semiconductor Transformation Technology" and "DC Specific Specification" opened by colleges and universities. Tr--ning device. At the same time, it can be used as a skill tr--ning device for primary and intermediate m--ntenance electricians, ** electricians, technicians and ** technicians.



2. Technical characteristics



1. Safety and reliable: This device is powered by isolation transformer, and has ground protection and leakage protection functions. The safety meets relevant national standards to ensure personal safety; according to the characteristics of different experimental items, two different experimental connection cables are equipped , The strong electric part uses a high -reliable sheath structure pistol plug connection (there is no possibility of electric shock). The weak electric part uses elastic 铍 铍 铍 naked exposed structure connecting cables. Both wires can only be matched with the corresponding inner holes. This is great. Improve the safety and rationality of the experiment.



2. Strong scalability: It can meet the experimental teaching of the corresponding courses of various schools. The depth and breadth of the experiment can be flexibly adjusted according to needs, and the popularization and improvement can be organically combined according to the process of teaching. The device adopts a pendant structure and is convenient for replacement. If the expansion function is required or developed new experiments, you can just add a part and never eliminate it.



3. Strong intuitiveness: The experimental pendant adopts the form of separation structure. The front is the experimental schematic diagram and test point, which enhances the students' perception and rational understanding of the experimental content; It is conducive to improving students' practical ability.



4. Strong advancedness: The experiment involves four commonly used category variable -flow technical experiments, and most of them are widely used practical circuits, but for the convenience of teaching, but also the simplicity of this device; this device is considered from the height of the new device. The characteristic experiments of new devices, the driver of the new device, and the modern power electronic technology experiments of typical new device applications allow students to have sufficient understanding and understanding of new devices and keep up with the pace of the times.



3. Technical performance



1. Input voltage: three -phase and four lines ～ 380V ± 10%50Hz 50Hz



2. Working environment: The ambient temperature is -10 ℃ ～+40 ℃ relative humidity <85%(25 ℃) Altitude <4000m



3. Device capacity: <1.5kva



4. Device size: 1600mm × 700mm × 1570mm (about 5%)

1. Experimental purpose:

Clear classes in water treatment usually include concrete, precipitation and filtration. The treatment objects are m--nly suspension and colloid impurities in water. After the raw water is added, the suspension of the water and the colloid in the water form a large particle flocculation, and then the gravity is separated by the sedimentation tank. The mechanical response sedimentation tank is a water purification structure with two functions: concrete and flocculation. This model is an experimental device that displays the internal structure of the flocculation reaction tank and the inclined sedimentation tank. Hope to achieve the following purpose:

1. Directly observe the organic glass device to deepen the understanding of each part of the composition;

2. Grasp the direction of water flow and operation and use of mechanical reaction tanks and sedimentation pools, and observe the condition of flocculation and precipitation.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 45 ℃

2. Treatment of water 200 L/h;

3. Device shape size: 6700mm × width 450mm × height 1900mm,

4. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 2300W power, safety protection: have ground protection, leakage protection, overcurrent protection, protection,

3. M--n configuration:

1. 1 raw water tank: white PP board, 10mm thickness, empty valve installed on the bottom plate, which is convenient for cleaning the water;

2. 1 set of raw water tank fabric stirring, 304 st--nless steel mixing paddles; (power 25W, speed 90rpm),

3. 1 set of mechanical flocculation ponds, transparent organic glass materials, 10mm thick, 500mm × width 300mm × height 500mm, 500mm,

4. 1 set of flat -type sedimentation tanks, transparent organic glass materials, 10mm thick, 500mm × width 300mm × height 400mm,

5. 1 set of diagonal tube sedimentation tank, transparent organic glass material, 10mm thick, 500mm × width 300mm × height 500mm,

6. 1 set of V -shaped filters, transparent organic glass materials, 10mm thick, 500mm × 400mm × height 600mm, 600mm,

7. 1 set of valve filters, transparent organic glass material, thickness 10mm, 450mm × 450mm × height 1500mm, 1500mm,

8. 1 set of disinfection ponds. Transparent organic glass material, thickness 10mm, 400mm × width 300mm × height 400mm
