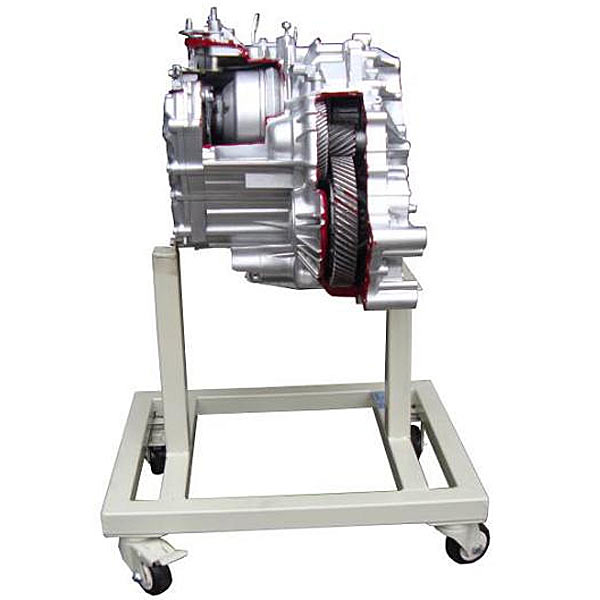

Anti -Active Transmission Anatomy Experiment

(2) Different colors are sprayed with the section of the section to make the mechanical structure inside the transmission clearly appear outside.

(3) It is conducive to observing each part of the transmission, which is convenient for disassembly tr--ning.

(4) The turning rack is welded with high -intensity steel structure, and the surface is treated with spraying process. There is a self -locking foot wheel at the bottom of the flipper, which can move.

(5) Dimensions: 1000 × 600 × 900mm (length × width × height)

Basic configuration (each)

Number of serial number name specifications

1 Anatomyless transmission assembly renovation, Fit set 1 1

2 The mobile rack (with a self -locking wheel device) 950 × 680 × 850mm (long × width × height)

Fang tube: 40*40*2.0mm

Foot wheel: 100mm × 50mm (diameter × width)

Color: 7032 units 1

Purpose:

1. Demonstrate the cause and destruction of the siphon and the strong distribution of pressure in the tube.

2. Measted the real vacuum of the siphon and determine the true --rspace to meet the energy conversion characteristics of the supply of siphon flow.

M--n configuration:

R--nbow pump, water pump, high water tank, low water tank, pressure metering tube, scaled ruler, gas pumping device, valve, self -circulating device, st--nless steel frame.

Technical Parameters:

1. Operating environment: temperature 0-40 ° C, relative humidity: ≤90%RH, power supply: 220V/50Hz. Can be continuously operated.

2. Rhostics diameter: φ25mm, height: 800mm. It is made of organic glass and distributed six measuring points.

3. The volume of high water tanks is 50L, and the volume of the low -level water tank is 70L, which is made of organic glass.

4. Adopt self -sucking gas technology. When starting, it can automatically exclude the --r in the tube, and the operation is easy.

5. The pressure measurement meter is transparent organic glass, which can display the vacuum of the measurement point and the pressure distribution in the tube.

6. The experimental pipe is equipped with a curved pipe flow meter to measure the flow.

7. Use a low noise -free and corrosive environmental water pump, ** r--sing: 12m, rated flow: 15L/min, power: 120W.

8. The voltage measuring meter is fixed on the pressure measurement rack with 8 organic glass tube with 800mm diameter φ8mm in diameter. It has a tape with a ruler on the measurement rack for convenient readings. The indicator liquid in the pressure difference is water, which is non -toxic and the operation is safe.

9. The fluid-water used in the experiment is designed with a full circular use, which fully saves water resources.

10. The frame and countertops are made of 304 st--nless steel. The structure is compact, the appearance is beautiful, and the operation is convenient.

11. Dimensions: 1200 × 500 × 1800mm (length × width × height), a mobile design, a foot wheel and a imprisoned foot.
