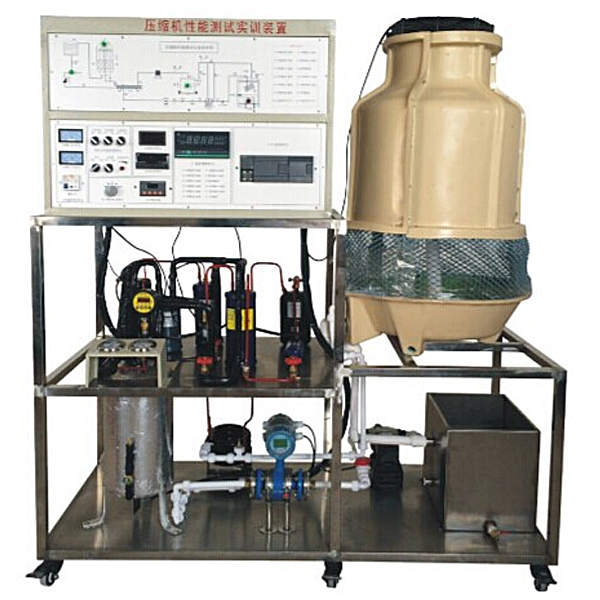

Smart refrigeration compressor performance test training device

"Smart Refrigeration Compressor Performance Test Test Tr--ning Device" is controlled by a programming controller PLC as the core, and according to national standard GB/T5773-2004 "Volume Refrigeration Compressor Performance Test Method", the second refrigeration dose heat device method is based The m--n measurement method is the auxiliary measurement method based on the water cooling condenser method. There are two ways: manual and automatic test data processing, test data collection and test data processing. It is suitable for teaching and tr--ning for related courses related to refrigeration majors in various universities.

Second, systemic characteristics

1. It consists of two systems, one is a compressor test system, and the other is overdue adjustment auxiliary system

2. The stability of the system working conditions adopts the PID control algorithm and the intelligent control algorithm control with the prediction mechanism

3. Technical performance

1. Enter power supply: three -phase and four -line ～ 380V ± 10% 50Hz 50Hz

2. Working environment: temperature -10 ℃ ～+40 ℃ relative humidity <85%(25 ℃) altitude <40 00M

3. Device capacity: <5K VA

4. Refrigerator: R22

5. Second refrigerant: R123

6. Refrigeration: 2.3kW

7. Weight: 100kg

8. There are voltage leakage protection, current leakage protection, overcurrent protection, overload protection, grounding protection, and safety meets relevant national standards.

The experimental table can conduct three types of dental sizes, displacement, force, and transmission efficiency of different spiral sidelines, and adopt advanced data collection transmission systems and data processing analysis software. One of the equipment.

Experimental project content:

1. Test the relationship between rectangular, trapezoidal, sawtooth spiral parameters and displacement;

2. The force test of the rectangular, trapezoidal, and sawtooth spiral spiral;

3. The transmission efficiency testing and analysis of the transmission efficiency of rectangular, trapezoidal, and sawtooth spiral;

M--n technical features:

1. The experimental table is driven by a DC speed regulating motor with a reduction. It is equipped with a clever design of the test parts and the adjustment mechanism. The input screw end is equipped with a torque speed sensor.

2. With three types of dental spirals, there are 5 guides of trapezoids, and two kinds of guidelines each with rectangular and jagged shapes. It is used to test the spiral transmission input torque and speed, and nut moving line speed of different dental guides to calculate its transmission efficiency.

3. The high -precision ZJ5 torque speed sensor is adopted, the measurement accuracy is+0.27%; it is equipped with data collection and enlarged transmission system and data processing analysis software. The RS232 serial port connects with the computer. Essence

4. The appearance of the experimental table is a workplace+cabinet floor -to -ceiling structure. It is equipped with adjustable ground bolts and activity wheels to facilitate laboratory adjustment and arrangement.

M--n configuration and technical parameters:

1. Tested spiral sub -:

(1) 32 single, double -line rectangular thread pitch p = 10mm guide S = 10, 20mm;

(2) 32 (1 ~ 5) Cable -shaped threading pitch p = 12mm guide S = 12, 24, 36, 48, 60mm;

(3) In the 32 single and double -line jagged threaded thread pitch p = 10mm guide S = 10, 20mm;

2. Eight load 砝 8 pieces 5kg/block;

3. 1 dedicated software disc;

4. The shape size 1000x520x870mm;

5. Weight 160kg.
