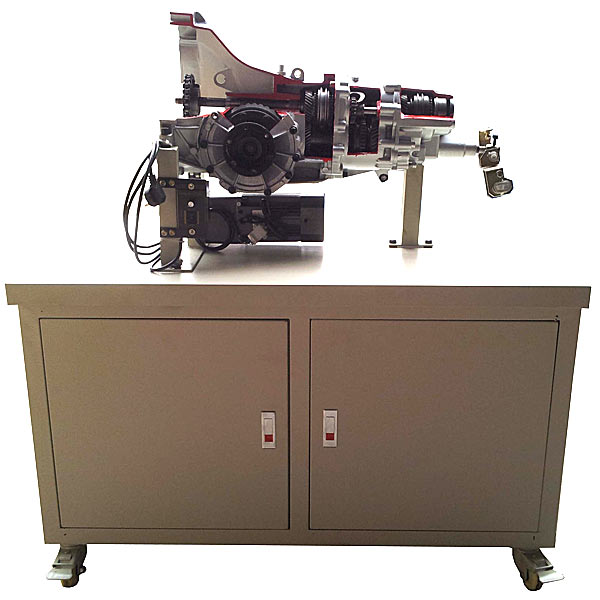

Manual transmission motor driver anatomy running training table

(2) Spray the mechanical profile of each transmission with different colors of p--nt.

(3) Demonstrate the transmission process of mechanical movements under different gears.

(4) The mobile table uses high -intensity steel structure welding, and the surface is sprayed on the surface. The bottom of the mobile platform has a self -locking foot wheel, which can be moved.

(5) Dimensions: 1000 × 600 × 1100mm (length × width × height)

Technical Parameters:

1. Operating environment: temperature 0-40 ° C, relative humidity: ≤90%RH, power supply: 220V/50Hz. Can be continuously operated.

2. Experimental water tank: 40L, transparent and organic glass, with a voltage voltage overflow.

3. Water storage tank, 500 × 400 × 400mm, material PVC board.

4. Measurement water tank: 6L transparent organic glass, with a scale of measuring.

5. Follow -range resistance pipes are φ20mm (inner diameter 14), φ25mm (inner diameter 20), φ32mm (inner diameter 25), 1 root each, total length of 1000mm, and organic glass.

6. Use low noise quiet and environmentally friendly pump, ** r--sing: 10m, rated flow: 12L/min, power: 90W.

7. The pressure measurement meter is fixed on the pressure measurement rack by 6 organic glass tube with 650mm diameter of 650mm in diameter. The measured ruler is sticky on the measurement rack for convenient reading. The indicator liquid in the pressure difference is water, which is non -toxic and safe.

8. The fluid-water used in the experiment is designed with a full-cycle, which fully saves water resources.

9. The frame and countertop are made of 304 st--nless steel. The structure is compact, the appearance is beautiful, and the operation is convenient.

10. Dimensions: 1500 × 500 × 1500mm (long × width × height), a mobile design, a foot wheel and a imprisoned foot.
