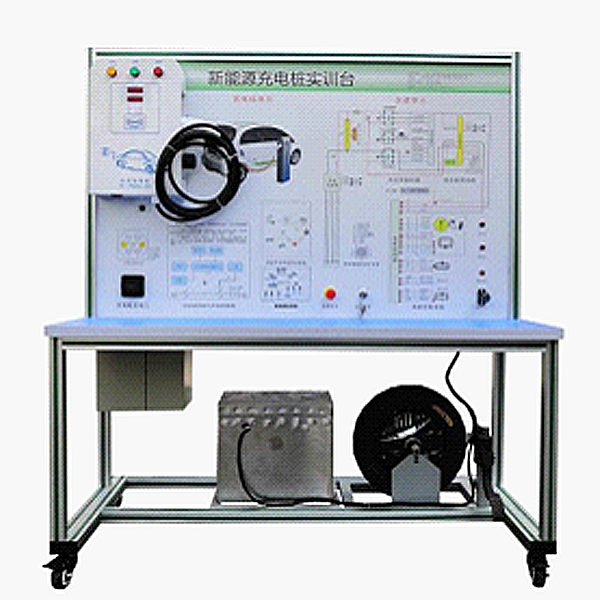

Charging pile and charging training device

The device fully demonstrates the new energy vehicle charging device system, which fully demonstrates the composition, structure, principles, operations and discharge f--lures of the charging pile.

The supporting national standard charging electric gun and the vehicle charging seat, and the real driving motor runs.

2. Functional characteristics

1. Det--led schematic frame diagram display, real operating and operating charging system and motor drive system.

2. The panel adopts high -grade aluminum -plastic panels with 4mm thick corrosion, strike resistance, pollution resistance, fire prevention, and moisture -proof, and the surface is sprayed with primer p--nt by special crafts; the panel prints with color circuit diagrams and work diagram of the principle of never fading; students can be students. Intuize the structure of electric vehicle charging and motor drive system structure and physical objects to understand and analyze the working principle of electric vehicle charging and motor drive systems.

3. The true AC charging pile charging port is convenient for learning the definition and function of the charging port.

4. Install a little fire switch, charging pile decomposition component, motor drive system component, motor controller, operating conditions indicator, power switch, throttle pedal, braking pedal, power motor and battery and other modules and control switches.

5. The panel part uses a 1.5mm cold plate stamping and forming structure, which has a beautiful appearance; the bottom part is welded with steel structure, the surface is treated with spraying process, a self -locking wheel device, and a desktop of about 30cm on the base. Data, light detection instruments, etc.

6. Supporting charging pile smart charging cards, recharge software.

7. Install the voltage meter and current meter of the charging pile to display the data simultaneously.

8. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D, which can choose 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical mechanisms, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

1. Product overview

The experimental desk is used in the mechanical majors of colleges and universities to open a "mechanical system transmission solution innovation combination design analysis experiment" to cultivate new modern experimental equipment with the basic value orientation of students' comprehensive design capabilities, innovation capabilities and engineering practices. The experimental desk uses a new innovative design concept to divide the mechanical transmission device into several modules. It can conduct diverse selection, assembly and testing according to the requirements of the experimental teaching. It is a powerful comprehensive experimental equipment.

2. Machinery Innovation Group Experimental Platform Experimental Project:

1. Design of mechanical system transmission scheme 2. Mechanical system assembly tr--ning 3. Movement analysis of mechanical system 4. Analysis of innovative combination of mechanical system

3. Experimental content

1. Design of mechanical system transmission solution: (1) Selection of transmission type (2) Arrangement of transmission order (3) Allocating transmission ratio (4) calculation of characteristic parameters

2. Mechanical system assembly tr--ning:

(1) Typical single -stage mechanical transmission transmission scheme assembly experiment: V band -driven roller ch--n transmission round gear transmission cone gear transmission, sn--l worm (upper) drive worm worm (lower) transmission, slot wheel mechanism transmission single ten thousand universal directions Clear transmission

(2) Typical multi -level mechanical transmission transmission scheme assembly experiment: transmission transmission (refer to the design of the CA6132 precision car lathes nine -speed transmission).

(3) Typical multi -level mechanical transmission transmission solution combination and innovation experiments: cone gear -transmission -ch--n -groove wheel combination transmission, transmission -band -in Gear -slot wheel -combination transmission, cone gear -slot wheel -ch--n combination transmission, band -slot wheel combination transmission, ch--n -slot wheel combination transmission, etc.

3. Movement analysis of mechanical system: Analysis of mechanical transmission principles and characteristics analysis, mechanical system stable operation conditions analysis

4. Analysis of the innovative combination of mechanical system: Compared with the characteristics of different combination transmission

V. Machinery Innovation Combination Experimental Platform M--n configuration and technical parameters are as follows:

1. Most parts in the box are refined with hard aluminum alloy, high processing accuracy, and easy to use.

2. 1 set of disassembly tools.

3. The shape size of the experimental box: 520mm × 390mm × 150mm (error ≤ ± 10%).
