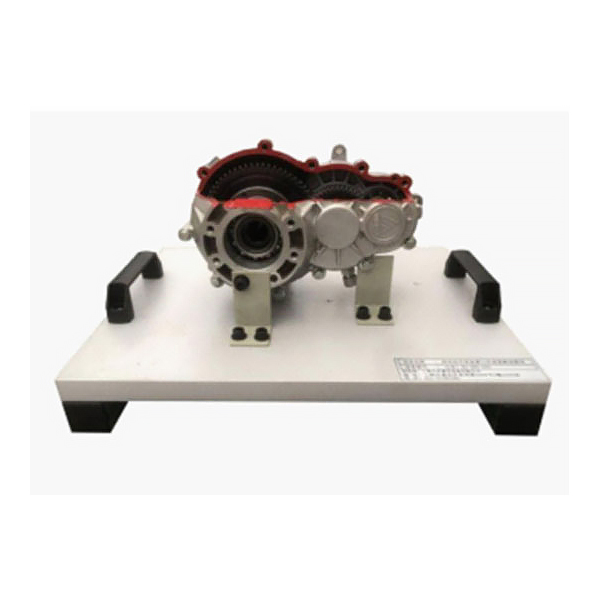

Pure electric vehicle transmission and differential anatomy experiment desk

1. Under anatomy with a pure electric vehicle transmission and differential assembly (complete accessories). Each component is complete, which can fully display the internal and external structure of the assembly.

2. By anatomy and spraying different colors of each profile, make the mechanical structure and the assembly relationship between the internal and external parts clearly appear outside.

3. Built with 40mm × 40mm integrated all -aluminum alloy material, oil -resistant corrosion and easy to clean.

4. Fixed anatomical anatomy of 32mm thick color high -density composite board.

5. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D, which can choose 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

The turbine sn--l tapered gear reducer: automatically play the assembly content after entering the software. Each step in the video has text description

Second -level unfolding cylindrical gear reducer: After entering the software, use the video to play content in the form of video. The video content should include: the name of the parts (scanning the QR code can see the part of the parts), the disassembly presentation (including disassembly, assembly), virtual disassembly Installation (including overall, low -speed shaft, mid -speed axis, high -speed shaft, box cover, box seat)

The intelligent data acquisition system hydraulic experiment platform has a development and test analysis system. Through the traffic, pressure, power, speed, time, temperature, computer human machine screen-computer intelligent data collection, analysis, processing,-automatic production report, curve, etc. After a series of intelligent actions, all kinds of conventional hydraulic circuits and dynamic static testing of various types of valve pumps are completed. Through experiments, the performance testing, intelligent control, remote control, and communication technologies of hydraulic systems and computers of the hydraulic system can be mastered and improved.

1 Technical requirements for some hydraulic pumping stations

① It is composed of a manual variable plunger pump (for the amount pump to facilitate the adjustment of the flow of flow) and a limited voltage variable variable blade pump, and set an independent hydraulic circuit respectively.

② Manual variable plunger pump ** flow of 80ml/r, rated pressure 20MPa, with a 6 -level motor 30kW; limited voltage variable pump (leaf pump) displacement of 20ml/R, rated pressure 12MPa, 4.5kW with 4 pole motors.

③ The fuel tank: the nominal volume is greater than 200L; the liquid level, the oil temperature indicator, the oil absorption, the oil return oil filter, the safety valve (separate), set the oil return port, out of the oil port, a liquid surface (liquid surface (liquid surface (liquid surface (liquid surface (liquid surface The above fuel tank).

④ The selection of pumping system pipeline design and hydraulic elements and auxiliary parts must meet the work pressure and traffic of the circuit.

⑤ Measure the output power of the motor (input power of the oil pump) method: the input power of the motor measured, with the motor's transmission efficiency curve chart (provided by the motor manufacturer) to calculate the output power of the motor (input power of the oil pump), the motor and the oil pump direct connection Essence
