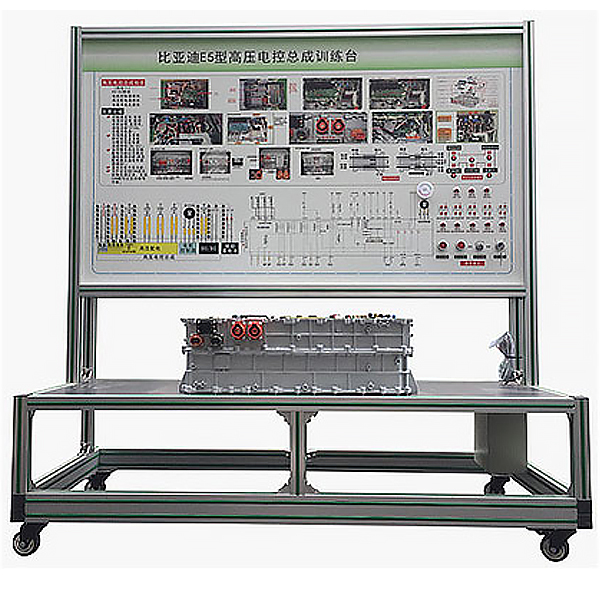

BYD high -voltage electronic control assembly training device

The high -voltage electrical control assembly (with high -voltage relay and fuse) is selected. Through the anatomy, the section is sprayed with different colors. The total internal mechanical electrical structure and the assembly of each other are clearly appeared outside. Display the internal structure of high -voltage electrical control assembly, which can compare the anatomy to understand the structure and principles of high -voltage electrical control assembly.

2. Functional characteristics

1. High -voltage electrical control assembly is placed on the table, observing the internal mechanical electrical structure and the assembly relationship between each other.

2. The internal device of the high -voltage electrical control assembly is coated with different colors to clearly display the installation position and electrical connection.

3. The device has four foot wheels, flexibly moves, and a self -locking device with a foot wheel at the same time, which can be fixed.

4. The equipment is equipped with the structure of the structure of the structure to display the name and connection method of the internal components and the internal structure.

5. The equipment framework is built with 40mm × 40mm and integrated all -aluminum alloy material. It is resistant to oil and corrosion and easy to clean. The tablet is 40cm wide, the countertop is paved with 32mm thick color high -density composite board, durable and rust, and 4 bands with 4 bands The self -locking device is a universal foot wheel, which is easy to move.

6. Supporting tr--ning guidance books and other teaching materials, including work principles, tr--ning items, fault analysis, etc.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

One and function

The hydraulic dissection cabinet uses physical or models and necessary graphic materials to display the basic types and basic structures of common hydraulic and pneumatic components. Each model of the hydraulic display cabinet is equipped with text signs.

2. Display content (display cabinet name)

1. Hydraulic pump 2. Hydraulic motor and hydraulic cylinder 3. Hydraulic control valve 4. Hydraulic auxiliary element

5. Qi source device 6. cylinder and gas motor 7. Pneumatic control valve (1) 8. Pneumatic control valve (2)

3. Performance specifications of pneumatic hydraulic components display cabinet

1. Each model in the pneumatic hydraulic component display cabinet is equipped with text signs.

2. The icon -type thinking question is designed in the pneumatic hydraulic component display cabinet for inspiration or inquiry teaching.

3. The models in the pneumatic hydraulic component display cabinet are m--nly refined by aluminum alloy and PVC. Metal parts are performed on the surface, not rust; non -metal parts have not aging for 10 years.

4. Pneumatic hydraulic component display cabinet cabinet is welded in SPCC cold tie plates, which are solid and beautiful. The surface is used with medium temperature phosphorus rust and flat p--nt, and static spraying. Model materials are made of imported organic boards or physical manufacturing. The board surface has necessary charts and text descriptions to demonstrate the image realistic and reliable. It is a set of modern machinery course teaching equipment.

5. The display cabinet is equipped with the light of tomorrow, and the glass is equipped with glass to prevent dust.

6. Input voltage: AC 220V, power 400W.

7. A single display cabinet shape size: 1100 × 450 × 1800mm
