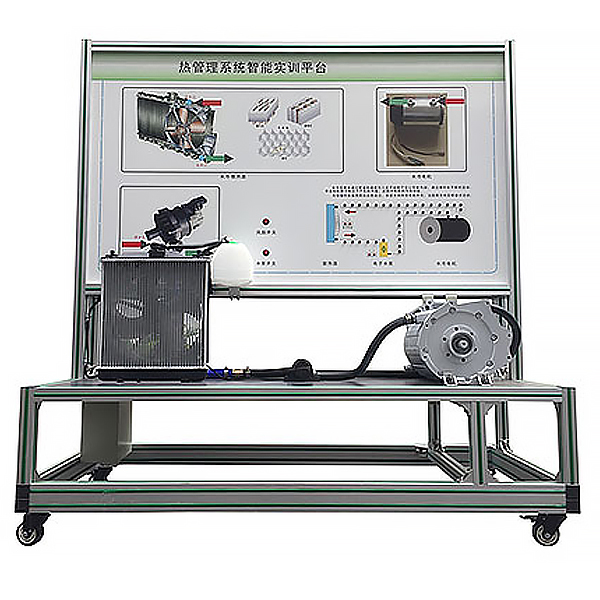

New Energy Electric Cooling Experimental Piner

The device uses an electric vehicle -driven motor cooling system to fully display the composition and working process of the electric vehicle -driven motor cooling system. It is suitable for the teaching needs of the school's theory and m--ntenance tr--ning for electric vehicle -driven motor cooling systems.

2. Functional characteristics

1. The electric vehicle driving motor cooling system running the demonstration fully displays the composition of the electric vehicle drive motor cooling system.

2. Operate the control switch to demonstrate the working process of the electric vehicle driving motor cooling system, and install the working process of the flashing light -emitting diode synchronous display system.

3. The panel uses a 4mm thick aluminum plastic panel, and the panel UV tablet inkjet is printed with color map boards. Students can intuitively compare the map boards and physical objects to understand and analyze the working principle of the system.

4. Electrical signals that detect terminals on the panel and can directly detect system circuit components on the panel, such as resistors, voltage, current, frequency signals, etc.

5. The water -cooled driver motor is applied to different colors by the anatomy and the section of each section, so that the mechanical structure of the internal and external parts and the assembly relationship between the internal and external parts clearly appear outside.

6. The equipment framework is built with 40mm × 40mm and 40mm × 80mm. With 4 self -locking devices universal foot wheels for easy movement.

1. Product introduction

The device is based on the refurbishment of Cummins EQB150-20 diesel engine. It can operate the engine to perform practical operations such as starting, acceleration, and deceleration. It truly displays the composition and working process of ordinary diesel engines.

2. Functional characteristics

The real -operated ordinary diesel engine fully displays the composition and working process of ordinary diesel engines.

The tr--ning table panel adopts a ** aluminum -plastic plate with 4mm thick corrosion, strike, pollution resistance, fire prevention, and moisture -proof, and spray primer on the surface by special crafts; the panel prints with color circuit diagrams that never fade; students can intuitively compare in comparison Circuit diagrams and diesel engines, understand and analyze the working principle of the control system.

Car instruments are installed on the tr--ning table panel, which can be displayed in real time to display the engine speed, water temperature, motor oil pressure lamp, charging indicator and other parameters.

The tr--ning terminals are installed on the panel and can directly detect electrical electrical appliances, solenoid valves, sensors and other electrical signals such as resistors, voltage, current, signals, etc.

The tr--ning desk is equipped with a throttle control device, which can be convenient for the engine to speed up and decelerate.

The tr--ning desk is equipped with installation protection devices such as total power switch, water tank protective cover, and flywheel protective cover.

The base of the tr--ning platform is welded with steel structure, the surface is treated with spray p--nt process, and the self -locking wheel device is flexible, safe, reliable, and durable.

Machinery assembly and fitter assembly virtual simulation software: This software is developed based on UNITY3D. It can choose level 6 image quality. It has the design and virtual disassembly of a reducer and axis structure Institutions (virtual disassembly of gasoline engine), the software is a overall software, which cannot be separated by separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.
