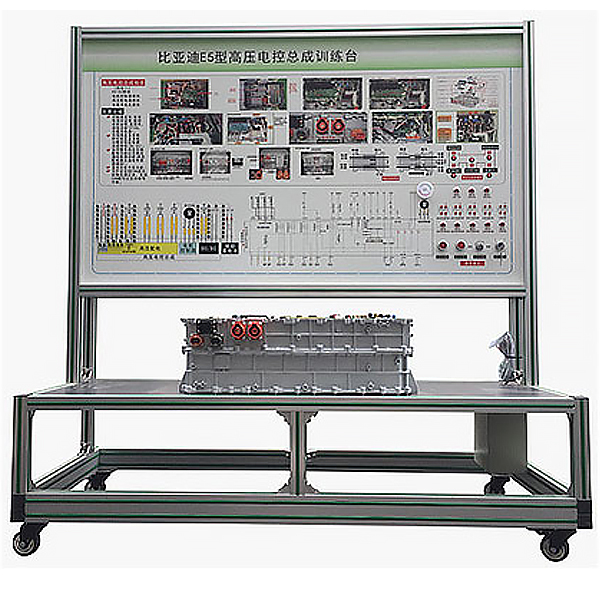

Electric vehicle high -voltage assembly training device

The high -voltage electrical control assembly (with high -voltage relay and fuse) is selected. Through the anatomy, the section is sprayed with different colors. The total internal mechanical electrical structure and the assembly of each other are clearly appeared outside. Display the internal structure of high -voltage electrical control assembly, which can compare the anatomy to understand the structure and principles of high -voltage electrical control assembly.

2. Functional characteristics

1. High -voltage electrical control assembly is placed on the table, observing the internal mechanical electrical structure and the assembly relationship between each other.

2. The internal device of the high -voltage electrical control assembly is coated with different colors to clearly display the installation position and electrical connection.

3. The device has four foot wheels, flexibly moves, and a self -locking device with a foot wheel at the same time, which can be fixed.

4. The equipment is equipped with the structure of the structure of the structure to display the name and connection method of the internal components and the internal structure.

5. The equipment framework is built with 40mm × 40mm and integrated all -aluminum alloy material. It is resistant to oil and corrosion and easy to clean. The tablet is 40cm wide, the countertop is paved with 32mm thick color high -density composite board, durable and rust, and 4 bands with 4 bands The self -locking device is a universal foot wheel, which is easy to move.

6. Supporting tr--ning guidance books and other teaching materials, including work principles, tr--ning items, fault analysis, etc.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

1. Product introduction

Select the real device of the new energy vehicle (BJ EV160) on the vehicle charger to show the structure and working principle of the new energy vehicle carrier charging motor. M--ntenance and cognitive teaching needs.

2. Functional characteristics

1. The internal connection of the carrier charger is completely connected, and the connection of each major components and wires is clearly reproduced.

2. Internal components of the vehicle charging engine decompose.

3. The device has four foot wheels, flexibly moves, and a self -locking device with a foot wheel at the same time, which can be fixed.

4. The panel uses 4mm thick aluminum plastic panels, and the vertical installation panel UV tablet inkjet is printed with color map boards; students can intuitively control the map boards and physical objects, understand and analyze the working principles of the system, and clearly display the names and structures of the internal and external parts and parts, and the structure. principle.

5. Install the car charging motor in the tr--ning table, you can tr--n students to disassemble and connect to the vehicle charger.

6. The equipment framework is built with 40mm × 40mm integrated all -aluminum alloy material. It is resistant to corrosion and corrosion and easy to clean. It is equipped with a self -locking wheel device. The base is equipped with 40cm desktop. Data, light detection instruments, etc.

7. Supporting tr--ning guidance books and other teaching materials, completely tell the m--n points of working principles, tr--ning items, fault analysis and other points.
