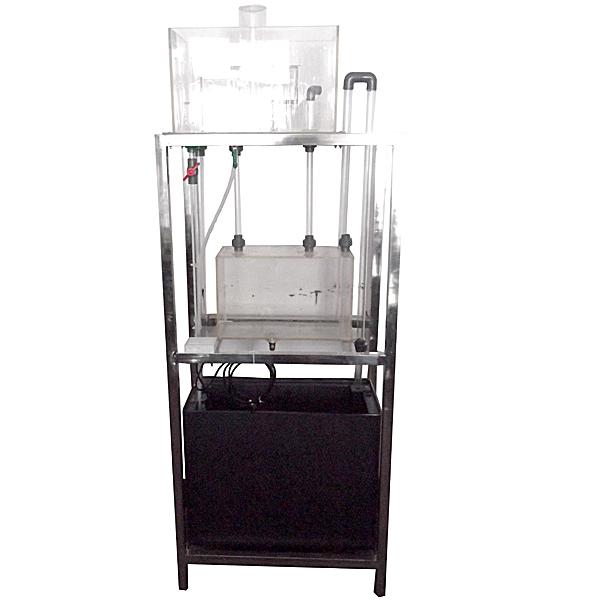

Fluid mechanical static experimental device

Purpose:

1. Deepen the understanding of the rules of stress transmission.

2. Master the transmission process and transmission method of static water pressure, and establish the concept of static water pressure transmission.

M--n configuration:

Water pumps, water supply tanks, high and low water tanks, --r pressure pipes, water supply pipes, siphon pipes, anti -stop valves, nozzles, st--nless steel brackets, etc.

Technical Parameters:

1. Operating environment: temperature 0-40 ° C, relative humidity: ≤90%RH, power supply: 220V/50Hz, which can be continuously operated.

2. Silent and environmentally friendly water pump: r--sing: 10m, rated flow: 12L/min, power: 90W.

3. Water tank: 60L, PVC material.

4. Height and low -level combination water tank: 30L volume, transparent organic glass material.

5. The fluid-water used in the experiment is designed with a full-cycle, which fully saves water resources.

6. The frame and countertop are made of 304 st--nless steel. The structure is compact, beautiful in appearance, and convenient to operate.

7. Dimensions: 1000 × 500 × 1800mm (length × width × height), the frame is a mobile design, with a foot wheel and imprisoned feet.
