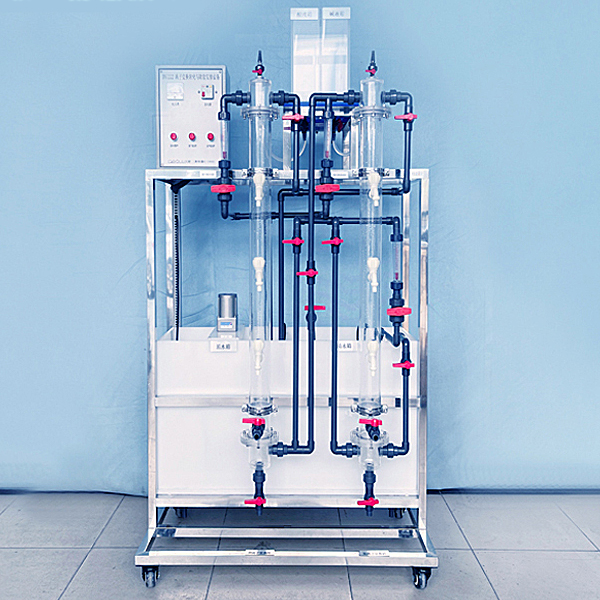

Softness and salt removal experimental device

The ion exchange softening method is widely used in the processing engineering. The use of strong acid cations exchange resin is also common. As a water treatment engineering technical personnel, the measurement method of this resin exchange capacity (that is, the full exchange capacity) should be mastered and the operation and operation of the soft water device should be understood.

Through this experiment, I hope to achieve the following goals:

1. Familiar with Shunliu regeneration fixed bed operation process;

2. Deepen the understanding of the basic theory of sodium ion exchange.

2. Experimental principle:

When water cont--ning calcium salt and magnesium salt switches the resin with cations with cations, the CA2+and MG2+ions in the water exchange with the exchanging ions (NA+or H+) in the resin to reduce the CA2+, MG2+content in the water or basically. All are removed, and this process is called water softening. After the resin f--ls, the resin must be regenerated, that is, the calcium and magnesium ions adsorbed on the resin are replaced, and it is replaced with a new exchanging ion. Sodium ion exchanges resin regeneration for salt (NACI), hydrogen ion -type exchange resin hydrochloric acid (HCI) or sulfuric acid (H2SO4). The basic reaction type is as follows:

3. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 40 ℃

2. Treatment of water: 35L ~ 56L/H

3. Softening exchanges m100mm × 1500mm,

4. Device shape size: 1100mm × 500mm × 2000mm,

5. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 300W power, safety protection: ground protection, leakage protection, overcurrent protection
