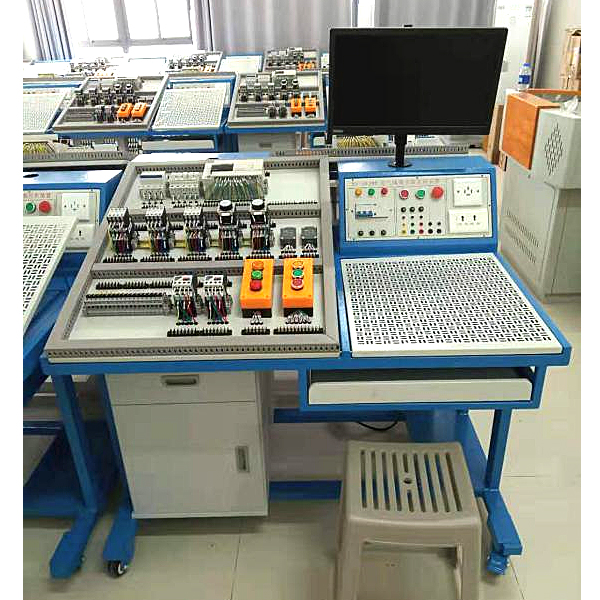

Comprehensive training device for maintenance electricians



The equipment is composed of the assessment platform of steel plate, mesh board equipment and power device. According to the needs of teaching and tr--ning, you can choose different components, devices and components to perform tr--ning of different curriculum modules and different projects. The components, devices and components that have been used are removed from the device, concentrated, and less damage and loss. Equipment is equipped with leakage protection, overload and circuit protection to ensure personal safety and equipment safety.



2. Equipment technical indicators



1. Standard: The overall size is 1200mm × 850mm × 1000mm (± 10mm);



2. Equipment materials: sheet metal, wooden cabinet structure;



3. Power:



1) Enter: Three -phase AC 380V ± 10% 50Hz three -phase and five lines;



2) Fixed communication and output: three -phase and five -line 380V plug -in group, 220V plug -in group, 220V socket 1 group, 380V socket type 1 group



4. Protection: The fuse is a short -circuit protection, the circuit breaker has overload protection, the leakage switch has leakage protection function, leakage protection action current ≤30mA, with power supply instructions.



3. Equipment structure function



The equipment consists of three parts: tr--ning screen (built -in power supply), tr--ning table (including keyboard), and lockers. The steel surface is sprayed with high temperature and plastic treatment, which is beautiful and effective and effective; the layout of the power box is the power protection device, power indicator device, and power output;

1. The composition and characteristics of the operation of the evaporation unit operation operation tr--ning device system

1. Framework \ st--rs \ guardr--l: Frame length × width × height: about 3000 × 1500 × 3500mm, and the width of the st--rs is 700mm. The total installation size of the equipment: 3700 × 1500 × 3500mm. The whole machine adopts steel installation framework (two layers of design, one layer of flat planes are convenient to operate, rep--r, and enter and exit. The second floor has a safe diagonal ladder and a guardr--l, non -slip pattern plate), anti -rust red dandan p--nt, and spray p--nt treatment. Fastener: with flange, valve, framework, st--rs, guardr--ls, brackets.

2. The system consists of an objective tr--ning device of the evaporation unit. All st--nless steel equipment is finely polished with st--nless steel, which reflects the perfectness of the entire device. This device cont--ns the full process of evaporating and heat -exchange production. It is also a complete modern industrial production device.

4. Local Intelligent Instrument Electric Console: About 1650X700X1400 Steel Spitting Piano Structure Local Instrument Electric Operation Piner (including RS485 communication interface control smart instrument, embedded microcomputer position and switch position, and cont--ns DCS connection Entrance). Internal installation of leakage protection of --r switch and current leakage protector fully consider personal safety protection; at the same time each set of strong electricity output has knob switch control to ensure the safety of the equipment and convenient operation control; Device, solid -state relay, self -lock switch, plastic copper wire, rubber sleeve, shielding thread, aluminum alloy wire groove, etc. The device can be independently measured and controlled by the on -site industrial control operating table by the intelligent instrument + industrial control configuration software with the RS485 communication bus + industrial control configuration software to complete each tr--ning program. The system can also use DCS control systems.
