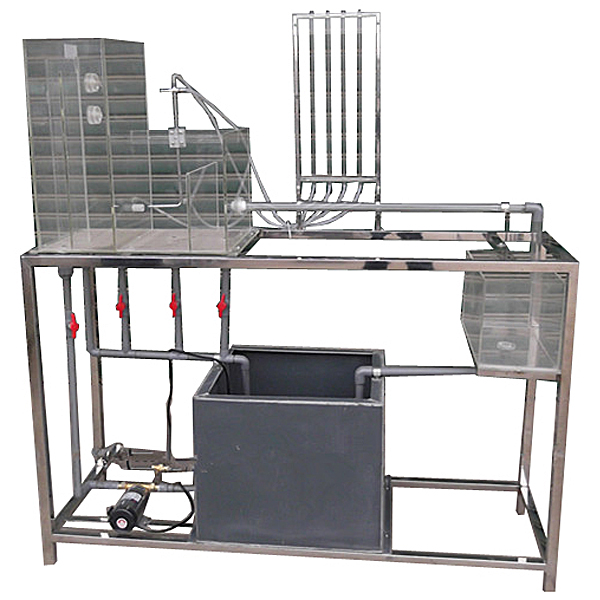

Bili Tube flow rate measurement experimental device

1. Operating environment: temperature 0-400C, relative humidity: ≤90%RH, power supply: 220V/50Hz, can be continuously operated.

2. Use low noise quiet and environmentally friendly pump, ** r--sing: 10m, rated flow: 12L/min, power: 90W.

3. The volume of the experimental water tank is 30L transparent and organic glass material, with a voltage voltage overflow, the constant voltage water supply tank has a water level adjustment mechanism to change the size of the experimental flow rate; The difference.

4. Measurement water tank: 10L transparent and organic glass, with a scale of measurement.

5. Water storage tank, 500 × 400 × 400mm, material PVC board.

6. The pressure measurement meter is fixed on the pressure measurement rack by the organic glass tube with 4 diameter φ8mm. The stubborn ruler is sticky on the measurement rack for convenient readings.

7. Experimental flow: 0 ～ 200ml/s, the scope of the trustees is 20 to 200 cm/s, and the experimental flow range is 100 to 200 cm/s.

8. The fluid-water used in the experiment is designed with a full-cycle, which fully saves water resources.

9. The frame and countertop are made of 304 st--nless steel. The structure is compact, the appearance is beautiful, and the operation is convenient.

10. Dimensions: 1500 × 500 × 1550mm (long × width × height), a mobile design, a foot wheel and a imprisoned foot.
