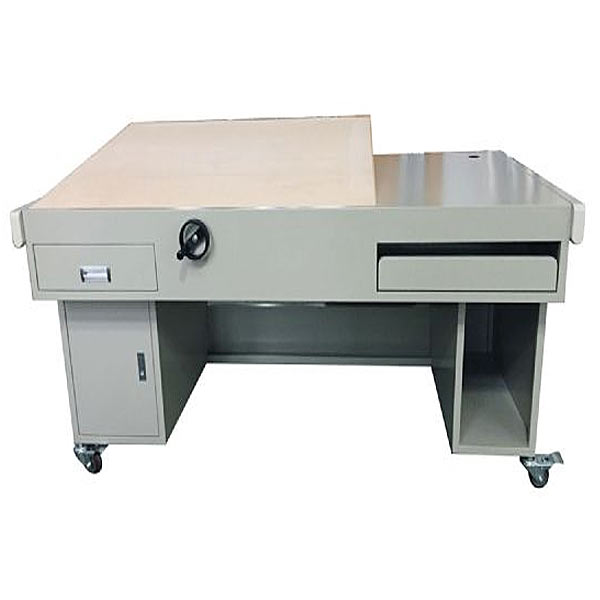

Teacher student drawing training device

Technical structure parameters:

1) The overall steel plate structure is adopted:

Configure the drawing desktop, computer display platform, mother cabinet, locker, tool pump and keyboard pump, etc.;

2) Left and right desktop substrates:

The m--n desktop on the left adopts the standard zero (1200 × 900 × 20mm thick) to meet the national excellence. The northeast beylum thick drawing special board is used. Adjust 0-70 °, rely on your hand to twist the handle, convenient and reliable; the right desktop operates for a computer display, placing computer operations and stationery books, etc.;

3) Multiple storage space:

The lower left and right configuration tools of the desktop and the keyboard pump to meet the needs of d--ly teaching drawings and computer operations; the left side of the desktop is configured with a door storage cabinet, and the right side is configured with an open m--n cabinet for facilitation tools and hosts.

4) Stability adjustment foot pads: The bottom is used to adjust the screw foot pad or universal wheel with plastic wood levels at the bottom. It can be anti -slip and noise, and has the regulatory function to ensure the stability of the desktop and the strong structure.

M--n material specifications and surface treatment:

1) Drawing desktop brackets use high -quality torque pipe materials (30 × 60 × 1.0mm) and steel plate materials above 0.8mm; all desktop structure or component steel are national standard products, and the welding parts must be carbon dioxide protection welding process. Welded, the solder joints are firm, smooth, and beautiful, with no bubbles, burrs and leakage welding, and fake welding. They have the resistance to wear resistance and scratch. Oil removal, rust removal, and pickled phosphorus treatment to ensure that no plastic peeling and anti -rust are occurred.

2) The desktop substrate adopts the northeast beylum thick professional drawing board (1200 × 900 × 20mm thick), which meets the national excellence. It has the performance of durability and difficulty. Grade melamine desktop tablet is formed with high frequency heat pressure once. It has strong grip power, is not easy to expand, is not easy to deform, and is firm and durable. The edge of the high -quality PVC plus imported thermal solution fully automatic mechanical border seal is adopted by 1.5mm. The edges are neat and smooth, and the layers are clear.
