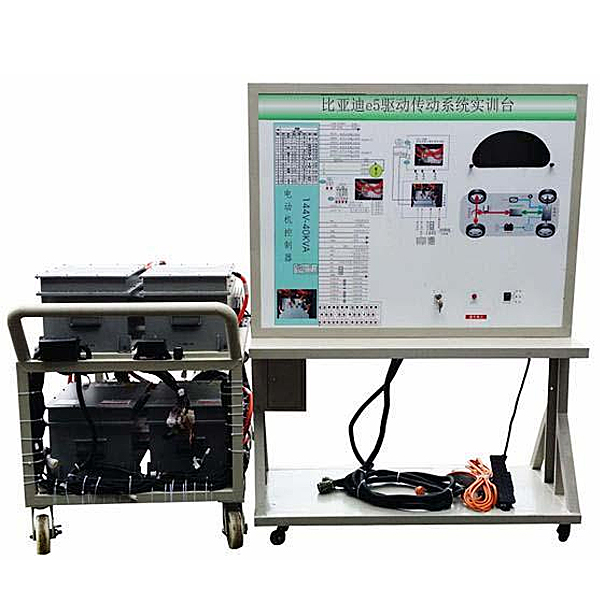

Electric vehicle drive demonstration experimental device

Select the original pure electric sedan high -voltage electrical control assembly and permanent magnet synchronous motor; the original supporting gearbox and the transmission shaft; the high -voltage power line and the low -voltage control line are connected with the tr--ning system of the power battery and the management system. Really show the connection control relationship, installation location and operating conditions of the core components of pure electric cars, and the safety precautions of high -voltage systems, and to cultivate students' ability to analyze and deal with pure electric car electric drive transmission systems.

Suitable for the teaching and m--ntenance tr--ning of new energy pure electric vehicles in various types of universities.

2. Functional characteristics

1. The m--n components are installed on the tr--ning platform to ret--n the electrical connection method of the original car. It can be convenient to disassemble after power off. Tr--ning and disassembling wire beams and electrical appliances, master the m--n points of disassembly and safety protection of high -voltage system components.

2. The cover of the power high -voltage distribution box is modified by transparent 5mm organic glass to clearly observe and understand the principle of control and internal control elements.

3. Driving the transmission system tr--ning table high -voltage power supply is provided by power battery and management system tr--ning description, and works with the tr--ning platform of the power battery and management system.

4. Teaching board fully displays the working scheme of the electrical drive system, installs the detection terminal, and can directly detect the electrical signals of the circuit component of the system on the panel, such as resistance, voltage, current, frequency, waveform signal, etc.

The panel adopts a ** aluminum -plastic plate with resistance, pollution resistance, fire prevention, and moisture -proof, and the surface is sprayed by special crafts to spray primer p--nt; panel prints with color circuit diagrams that will never fade, etc.;

5. Install the original car brake at the drive shaft output end, simulate the vehicle load system, and by adjusting the load size of the two ends to truly display the electric drive transmission system (start, accelerate, uniform speed, deceleration, parking, climbing, climbing, etc.), and Data change laws such as voltage.

6. The device consists of a platform and a teaching board. The platform is placed horizontally and the original car parts are installed; 4 self -lock -locking wheel devices are installed at the bottom.

7. The panel part uses a 1.5mm cold plate stamping and forming structure, which is beautiful in shape; the bottom part is welded with steel structure, the surface is treated with spraying process, a self -locking foot wheel device, and a countertop of about 30cm on the teaching plate base, which is convenient for placing information , Light detection instrument, etc.

8. Equipped with intelligent fault settings and assessment systems, the fault point is m--nly set in low -voltage control lines to ensure the safety and tr--ning of the high -voltage system and the ability to tr--n real car f--lure.

9. The tablet is equipped with an insulated floor (insulation and pressure -resistant national standard product ground glue).

10. Supporting tr--ning guidance, including system work principles, tr--ning subjects, fault settings and removal.
