Elevator door system disassembly training device

The door system installation tr--ning platform is a tr--ning platform suitable for various elevator door system installation based on the elevator installation process and m--ntenance requirements, combined with the current elevator market's door system structure. Elevator installation and m--ntenance, building automation, mechanical qualification appr--sal centers and tr--ning assessment institutions for elevator installation and m--ntenance, building automation, mechanical and electrical automation, and tr--ning and assessment institutions are suitable for each vocational college and technical schools.

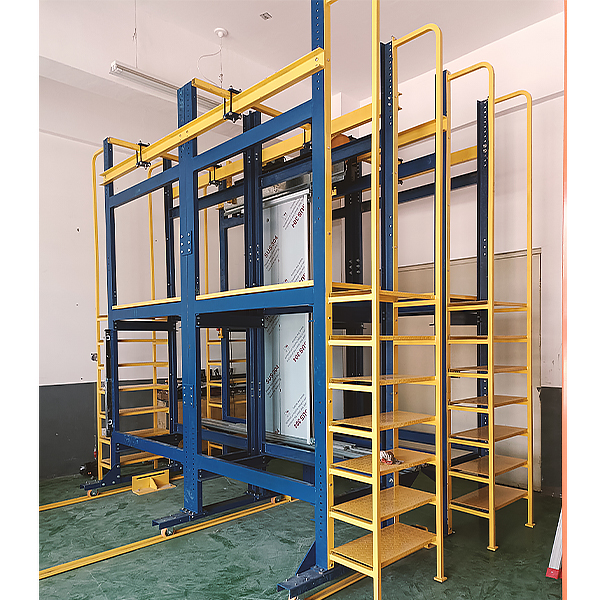

The entire device is composed of a fixed frame, a movement frame, a door system, and a sedan door system. The unique design enables the layer door and the sedan door to be separated separately, and the frame can be merged to achieve the link between the sedan door and the layer door. Allow students to intuitively understand the structure of the elevator door system, and more effectively help students master their working principles, and make it more convenient to carry out actual installation and m--ntenance.

2. Product characteristics

1. The design of the steel structure framework platform is adopted, and the overall appearance is simple and clear;

2. Follow the modular design concept, and conduct teaching and tr--ning design according to the requirements of the elevator installation process;

3. Use a horizontal movement method to install and debug the layer door and the sedan door;

4. Suitable for the installation of various elevator door systems.

3. Technical parameters

1. The weight of the whole machine: ≥4000kg;

2. Dimensions: 4780mm × 3700mm × 3510mm (long × width × height);

3. Framework movement itinerary: 1440mm;

4. Frame Corridor width: 60mm;

5, door installation range: suitable for installation of various elevator doors.

I. Overview



The comprehensive experimental system of the electrician absorbs the advantages of advanced teaching instruments at home and abroad, and fully considers the current status and future development trends of the laboratory. It has innovated in performance and structure. Convenient and flexible. The full digital display and accuracy of the experimental instrument are highly protected by the power supply and instrument instrument involved in the experiments. At the same time, a reliable personal safety protection system is set up. best choice.



2. Simulation experiment software:



1. Electricity safety and electric shock first --d virtual simulation system (provided demonstration and copyright certificate): The software adopts a virtual screen combined with two -dimensional and three -dimensional combination to teach students the safety and first ---d method of electricity. Electric shocks, step -by -step shock, low -voltage electric shock first --d, high -voltage electric shock first --d, artificial respiratory rescue method, holding hand respiratory rescue method, chest and heart compression method, etc. Demonstration of electric shock and other principles. Low -voltage electric shock and high -voltage electrical shock teaching m--nly expl--ns how to rescue people when they are rescued by people who are in low -voltage or high -voltage electric shock. The color makes the model look like the real parts, and the picture is realistic. Through tr--ning, students can conduct tr--ning room safety education education, improve students' awareness of safety, enable students to learn some self -rescue methods, so that students can take cert--n safety measures when they encounter danger, protect themselves, and familiarize themselves with various kinds The causes of electrical accidents and practical measures to deal with electrical accidents reduce the occurrence of electrical accidents.



2. M--ntenance Electrical Electrical Electric and Occupational Qualification Tr--ning Evaluation Simulation Simpage (Provide Demonstration and Copyright Certificate): Software content includes: safe and electricity common sense, electrical tools, electrical articles, electrical instruments, electrical lighting circuits, motors, transformers, low voltage electrical appliances, low -voltage electrical appliances , Drag, oscilloscope, low -frequency signal source, welding process, SMT technology, electronic product manufacturing process, f--lure elimination, connection, three -dimensional disassembly, shaft system disassembly (including cylindrical gear axis, cone gear shafts worm More than ten experiments such as the axis system), the school can choose the corresponding tr--ning module according to the student's learning progress for tr--ning.



3. Three -purpose table simulation software (providing demonstration and copyright certificate): This software is the format of the APK, which can be used on the PC side or can also be used on the mobile terminal. Measure the transformer. If the transformer measures the burning and multi -purpose meter, the black smoke prompts and can be reset the multi -purpose meter), the polar judgment of the transistor, the DC voltage measurement (the light is bright at the current meter file), the measurement of DC current, and the good capacitance is good Bad judgment. This software can be dragged arbitrarily red and black pen heads. Two pen heads are dragged to the red circle when the target is located. The measured data error, etc.), the instrument pointer will be re -measured without response, prompt error, etc. Clearly watch the size of the test data. Students can learn the correct use of multiple tables through this software.



4. Teachers' teaching design system (provided demonstration and copyright certificate): This system is the format of the APK, which can be used on the PC side, or can be used on the mobile terminal. This system can be manually set up by manual settings. Select the green box in the circuit diagram to manually set the fault point (you can set up to 39 fault points). You can also automatically perform a random f--lure point settings through the system, two fault points settings, random three fault points settings, random four random four, random four random four The fault point settings, the random fault point settings, the functions in this system have functions such as toolboxes, component libraries, magnifying glasses, circuit diagrams and other functions. You can choose a multimeter to detect through the toolbox. Learn about each device and circuit. This system starts the control circuit f--lure through the motor star triangle, and has been investigated to allow students to understand the working principle and circuit structure of the motor star triangle to start the control circuit.
