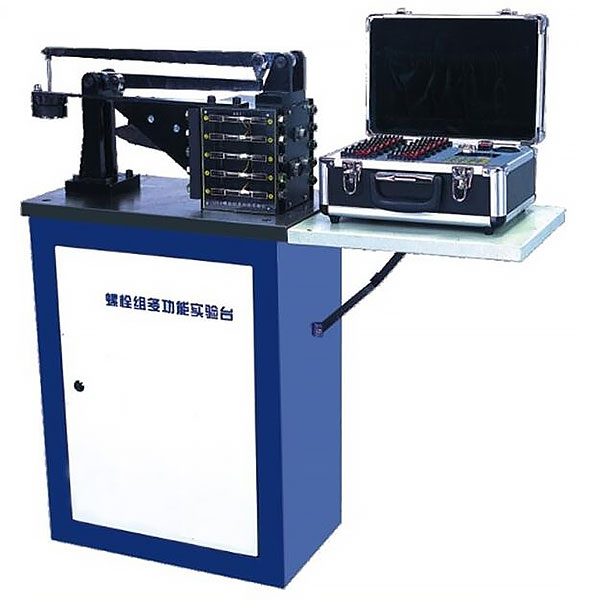

The bolt group connects the experiment table

Experimental project content:

1. Bolt group connection feature experiment;

2. Resistance The sensitivity coefficient measurement experiment (secondary development);

3. Gradually open the gear tooth root stress test experiment (secondary development);

4. Equity beam stress test experiment (secondary development).

M--n technical features:

1. The experimental desk is m--nly used to test the force and deformation of each bolt in the bolt group under the action of a condensed torque. It can also be developed for the secondary development of the dental root stress test experiment, the stress test experiment of the cantilever beam, and the resistance of the resistance of the resistor should be measured.

2. Use special software to collect and analyze the data, automatically draw actual measurement curves and simulation curves; in addition, the measurement panel is equipped with a digital tube, displaying the measured data, and can be manually recorded and manually draws experimental data curve.

3. The measured bolt is refined with 40CR high -quality alloy steel, and the performance is stable.

4. The appearance of the experimental table is a workplace+box cabinet landing structure. It is equipped with adjustable ground bolts and activity wheels to facilitate the adjustment and layout of the laboratory.

1. Product introduction

Based on the cooling system of electric vehicles electric water, the equipment comprehensively demonstrated the composition and working process of electric vehicle electric water cold heat dissipation system.

It is suitable for the teaching needs of the school's theory and m--ntenance tr--ning for electric vehicle electric water cold heat dissipation systems.

2. Functional characteristics

1. Real and running electric vehicle electric water cold heat dissipation system, fully display the composition of the electric water cold and cooling system of electric vehicles.

2. Adjust the simulation knob to the changes in the temperature of the coolant, and fully demonstrate the working process of the electric water cooling and cooling system of the electric vehicle.

3. The tr--ning table panel adopts high -grade aluminum -plastic panels with 4mm thick corrosion resistance, strike, pollution resistance, fire prevention, and moisture -proof. In the control circuit diagram and physical objects, understand and analyze the working principle of the cooling and cooling system of electric vehicles.

4. The electrical signal that detects the terminals on the panel and can directly detect the electrical vehicle electric water cold heat dissipation system circuit component, such as resistance, voltage, current, frequency signals, etc.

6. The base of the tr--ning platform is welded with steel structure, and the surface is treated with spraying process. It has a self -locking wheel device. It is flexible, safe, reliable, and durable.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

The turbine sn--l tapered gear reducer: automatically play the assembly content after entering the software. Each step in the video has text description

Second -level unfolding cylindrical gear reducer: After entering the software, use the video to play content in the form of video. The video content should include: the name of the parts (scanning the QR code can see the part of the parts), the disassembly presentation (including disassembly, assembly), virtual disassembly Installation (including overall, low -speed shaft, mid -speed axis, high -speed shaft, box cover, box seat)

Cone cylindrical gear reducer, coaxial cylindrical gear reducer, conical gear reducer, first -class cylindrical gear reducer: After clicking, automatically jump to the Edrawings interface. The models are all three -dimensional models. It can rotate, magnify, shrink, and translate in 360 ° in all directions. At the same time, the entire reducer can be disassembled and assembled through the function of mobile parts. At the same time, you can select the homepage button to return to the initial state of the reducer. The cone gear reducer and first -class cylindrical gear reducer increase the plug -in horizontal surface function, which can freely drag the horizontal surface to observe the internal structure of the reducer.
