Disassembling and running training desk for gasoline engines

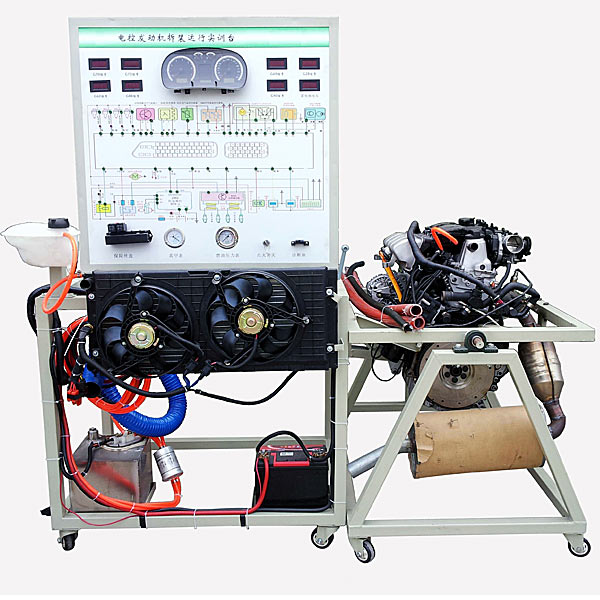

The teaching equipment is composed of two parts: disassembly and reversing tablets and running detection console with an electronic control gasoline engine assembly (easy to disassembled). Disassembling and flipping the tables provide students to conduct engine disassembly and assembly tr--ning. After assembling the engine, you can connect with the running detection console. You can start the engine to detect the assembly effect of the engine.

two. Features

1. The tr--ning countertop is p--nted with a color inkjet circuit diagram. Students can intuitively control the working principle of the circuit diagram and electronic control gasoline engine, understand and analyze the control system;

2. The tr--ning table consists of two parts: disassembly and flipping tablet and running detection console.

The disassembly and flipping tables are composed of electronic control gasoline engine assemblies and engine disassembly can be used for 360 -degree flip engines.

3. Disassembling and flipping bench with a reducer can be used as a shaft -directional flip and static, which can be convenient for disassembly and assembly tr--ning. The oil disk is placed at the bottom to facilitate the collection of small parts, water and oil. Do not land on the ground;

The running detection control tables are installed with all component elements of the engine, such as electronic control units, water tanks, fuel tanks and fuel pumps, instruments, ignition switches, etc., and dock with the disassembly and flipping tables for oil circuits, circuits, water, and gas circuits. , Can run the engine (accelerate/deceleration/idle work conditions), detect the effect of the engine assembly;

4. The tr--ning countertop is p--nted with a color UV tablet inkjet circuit diagram. Students can intuitively control the working principle of the circuit diagram and the actual engine of the engine, to understand and analyze the control system;

5. The panel adopts a 4mm thick -resistant and corrosion resistance, strike resistance, pollution resistance, fire prevention, and moisture -proof high -grade aluminum -plastic panels. The surface is sprayed with primer p--nt on the surface. Install the electrical signal of various sensors, actuators, and engine control units on the panel, such as resistance, voltage, current, frequency signals, etc.

There are car instruments, fuel pressure gauges, and vacuum pressure meters installed on the tr--ning table panel. It can display changes in the engine speed, fuel injection pressure, and intake pipe pressure in real time;

6. The tr--ning desk is installed with a diagnostic seat, which can be connected to a dedicated or universal car decoder to read the engine electrical control system to read the fault code, clear the fault code, and the data flow.

7. The tr--ning desk is equipped with installation protection devices such as power supply switch, flywheel protective cover.
