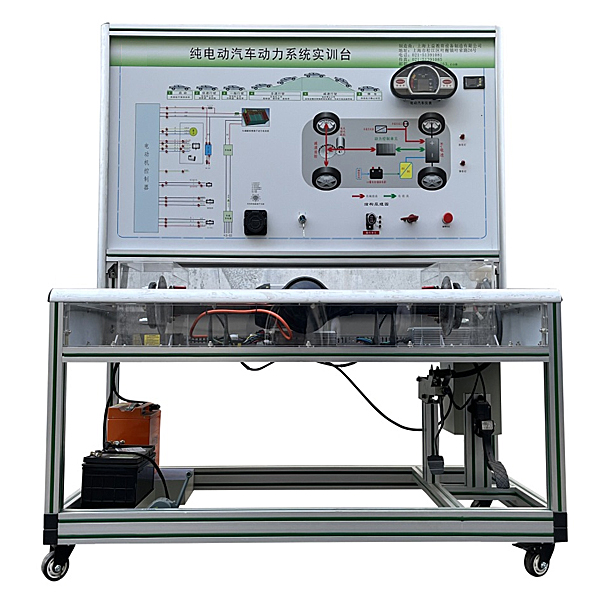

New Energy Vehicle Electric Training Device

I. Overview

This device can display the automotive electric power system, simulating the starting, low -speed driving, general driving, full -speed driving, decelerating driving, and parking state of the vehicle and the operating status of the motor. System work conditions.

It is suitable for the teaching needs of the pure electric vehicle power driving system of "New Energy Vehicle and Electronics Technology".

Second, structure composition

The device is launched by start switch, throttle pedal, gear switch, brake switch, digital speed meter, current indicator table, etc., and supplemented by the dynamic indicator of the system flow with the light emitting diode. Figures, control panels, mobile tables, use operation manuals, etc.

Third, functional characteristics

1. The device fully demonstrates the automotive electric power system, which can dynamically simulate the energy flow direction of the power flow in the start, low -speed driving, general driving, full -speed driving, deceleration and parking of parking and the running status of the motor.

2. Install a ignition switch, work condition switch, throttle pedal, gear switch, brake switch, digital speed meter, current indicator table, etc., supplemented by the dynamic instructions for system flowing in the light -emitting diode, and set it up. There is an analog motor to demonstrate the working state of the motor.

3. The appearance of the teaching plate panel is beautiful; the bottom part is welded with steel structure, the surface is treated with spraying process, a self -locking wheel device, and a desktop of about 30cm on the profile base, which is convenient for placing data and light detection instruments.

Technical Parameters:

1. Input power supply: single phase AC220V ± 10% 50Hz, power 1.5kW.

2. This device is m--nly composed of circulating cooling sinks, upper and lower hot plates, temperature -measuring thermocouples and temperature display parts, liquid grooves, etc.

3. The heater is a copper plate with a power of 500W and a thermal plate at the bottom.

4. Temperature measurement: The measurement system is equipped with an intelligent temperature control instrument (PID adjustment temperature control, accuracy ± 0.2 ° C), and high -precision PID pressure regulating module circuit.

5. Specifications: φ400 × 400mm, the shape is st--nless steel structure.

6. Building building and smart building electrical installation virtual simulation software

Based on the UNITY3D design, users choose different interactive interface size based on the computer configuration. The software in the software can be rotated, magnified, reduced, and translated at 360 °. There are small assistant tips for software use, the content is as follows:

A. Wet alarm system

1. System summary: Overview of Wet Alarm System

2. Equipment cognition: set up the best perspective, equipment det--ls (display the introduction or parameter of the device), practice (built -in 6 selection questions, there are prompts for correctness and errors), schematic diagrams (can be entered from the schematic diagram Go to the device). The equipment includes: nozzle, water flow indicator, signal butterfly valve, exhaust valve, fire alarm control, executive pressure gauge, high water tank, Weia control cabinet, stabilization tank, flow switch, end -end water testing device, dr--nage facility, water pump combinations, water pump combination Instruments, hydraulic bells, latencys, wet alarms, butterfly valves, stop valves, fire pumps, safe stabilization valves, fire pools.

3. Principles display: Show the working principle of the wet alarm system, the three -dimensional animation demonstration, the three -dimensional model is translucent, and the internal water flow can be seen. Equipped with the exercise module (4 built -in multiple choice questions, there are prompts to choose correctly and errors)
