Electric vehicle vacuum -assisted liquid pressure braking practical training device

Product introduction

Select the m--nstream new energy electric vacuum vacuum -assisted liquid suppression parts, the function and control method is exactly the same as the general pure electric vehicle, which truly presents the connection control relationship, installation location and operation of the new energy electric vacuum vacuum -assisted liquid suppression braking components, the installation location and operation of the operation. Parameters display the vacuum level through the vacuum table, so that students can understand the principle of vacuum pumps to trigger vacuum, and cultivate students to help analysis and processing of electric vacuum.

Features

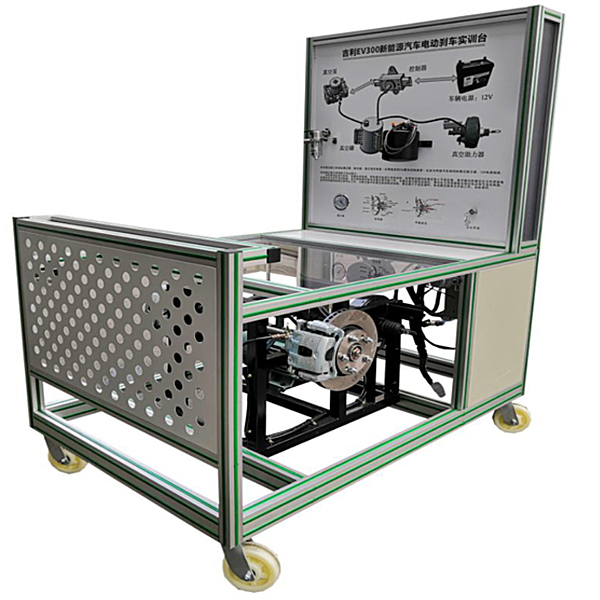

1. Real and running new energy electric vacuum cantaus -assisted liquid pressure brakes, fully show the structure and logical control relationship of each major component component.

2. The m--n components are installed on the tablet. The electrical connection method is the same as the real car. It can be convenient to disassemble and allow students to master the m--n point of disassembling the disassembly of the electric vacuum -assisted liquid for the disassembly connection process;

3. Connect the vacuum meter and the vacuum tank. It is installed on the tablet panel. The vacuum pump current is closed and disconnected on the panel. When -45kPa, the pressure sensor closed the 12V power supply and the vacuum pump worked; when the real vacuum rose to -80kPa, the pressure sensor disconnected the 12V power supply and the vacuum pump stopped working; through actual observation of the students to master the principle of pure electric vacuum help work principle.

4. The tr--ning table is placed horizontally, and the m--n parts are installed; 4 foot wheels are installed at the bottom of the table frame. The movement is flexible. With a self -locking wheel device, the position can be fixed.

5. Equipped with safety protection devices such as brake protective hoods.

6. Equipped with an anatomical complete vacuum pump assembly, vacuum tank assembly, a booster with a pump assembly, displaying the m--n component structure of the electric vacuum assisted system.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

Technical Parameters:

1. Input power supply: single phase AC220V ± 10% 50Hz, 500W power.

2. Fortune fan: voltage 220V, power: 85W, --r volume: 1000 m3/h; organic glass experiment body.

3. Heating metal tube (304 st--nless steel): ф 3-6mm options, each 3 different size specifications.

4. Silicon rectifier: input 220V, output: voltage 0-12V, current 0-100A;

5. Power difference meter: UJ36A DC potential difference meter.

6. Blittering flow meter with oblique tube micro pressure meter metering speed: volume-10-700Pa.

7. Temperature measurement: The measurement system is equipped with an intelligent temperature control instrument (PID adjustment temperature control, accuracy ± 0.2 ° C), and high -precision PID pressure regulating module circuit. Manual wind door adjusts the --r volume.

8. Dimensions: 600 × 400 × 1200mm. The shape is st--nless steel moving bracket with a double brake wheel.
