ZOPMX transparent motor and transformer training device

The transparent motor and transformer model, simulation motor model, teaching demonstration motor uses high -precision processing technology to overcome the characteristics of transparent organic glass that has the characteristics of thermoplasticity, easy deformation and mechanical strength, all of which have achieved mold processing and one -time molding. Make the motor model transparent and intuitive

This series of transparent motor and transformer teaching models adopt the same external dimensions as the real objects, and the internal structure is made according to the corresponding motor principle structure. The outer casing is made of imported transparent organic glass and molded in one step. It is transparent and intuitive, has a realistic image, and can be powered on for demonstration and real reaction. The structure and working principle of motors are ideal supporting equipment for expl*ning the working principles and structures of motors in various colleges and universities, as well as for motor disassembly and assembly, motor inspection, motor m*ntenance and testing tr*ning rooms.

The transformer model is a traditional teaching *d product. It has been continuously improved and explored based on many years of production, and with reference to foreign advanced technology, high-precision processing technology has been used to overcome the characteristics of transparent organic glass that is thermoplastic, easy to deform, and has poor mechanical strength, and all have been molded. , one-time molding. The motor model is made transparent and intuitive, exquisite and lifelike, and can be powered on and rotated for demonstration. The special teaching requirement of “transparency and demonstration” is highlighted. While designing products, the company focuses on theory as the basis and demonstration as the purpose. The appearance of the series of motor and transformer models adopts the same shape as the real thing, with a variety of organic colors. The internal structure is made according to the relevant motor principles. We strive to pursue the layering and perspective of the model, correctly reflect the teaching principles, and strive to achieve better teaching purposes and Effect.

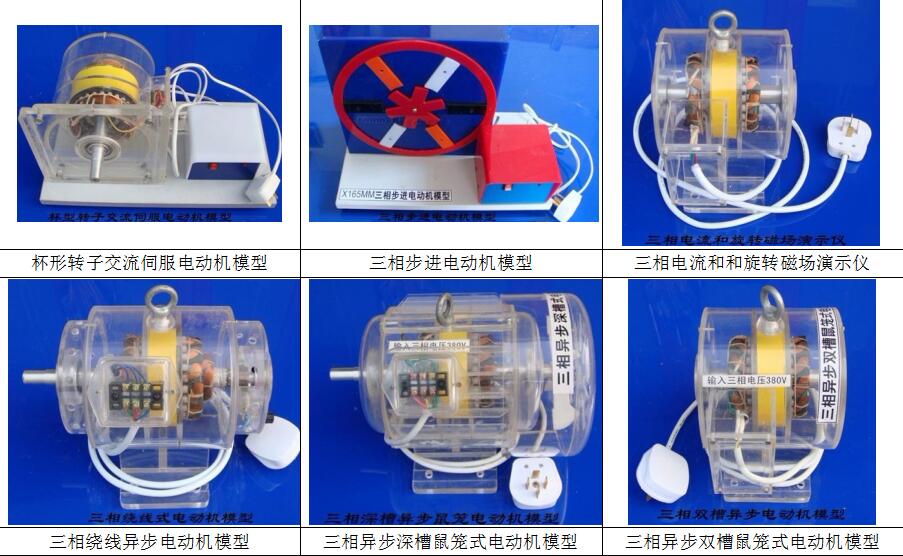

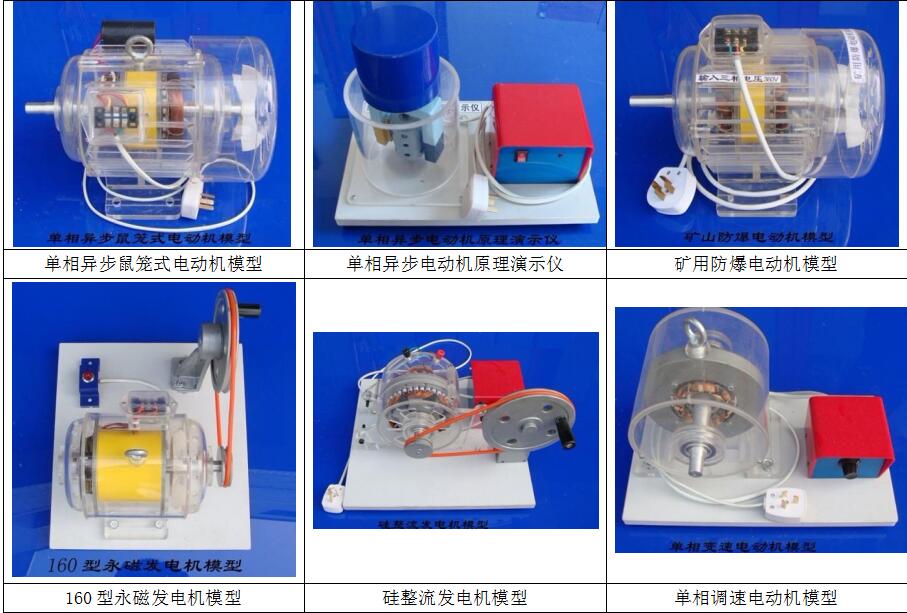

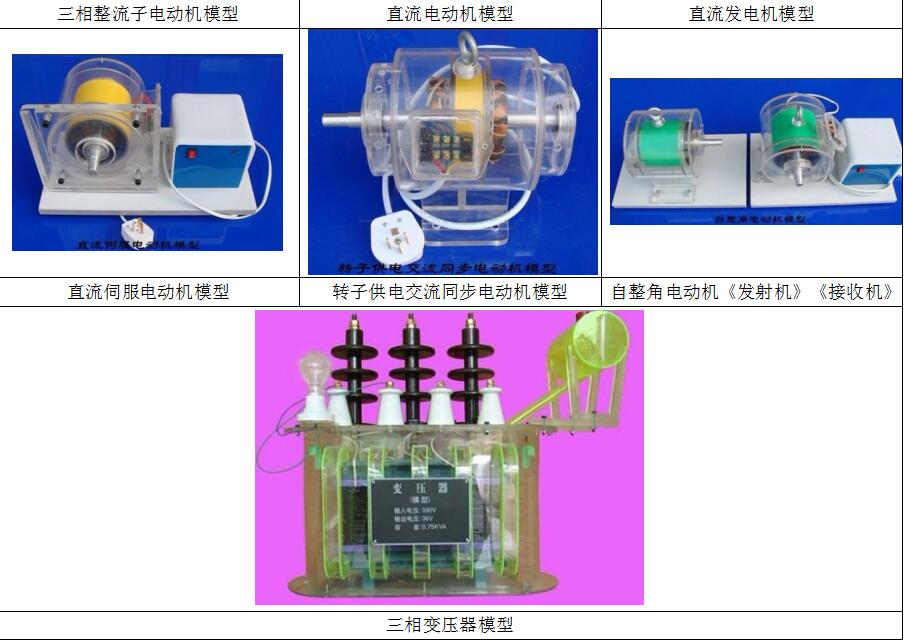

List and technical parameters

serial number	name	Specification	Technical Parameters
ZRMX-MX1	Three-phase wound asynchronous motor model	260×180×220 (mm)	Three-phase wound asynchronous motor model, input three-phase low voltage 380V, speed 500 rpm 800 rpm
ZRMX-MX2	Three-phase squirrel cage motor model	280×200×230(mm)	Three-phase asynchronous squirrel-cage motor model, input three-phase voltage 380V, speed 600 rpm 1000 rpm
ZRMX-MX3	Single-phase asynchronous squirrel-cage motor model	280×200×230(mm)	Single-phase asynchronous squirrel-cage motor model, input voltage single-phase voltage 220V, speed 600-1000 rpm
ZRMX-MX4	DC servo motor model	350×220×230 (mm)	DC servo motor model, input DC 220V, speed 500-800 rpm
ZRMX-MX5	Single-phase asynchronous motor principle demonstrator	350×220×230 (mm)	Single-phase asynchronous motor principle demonstrator, input single-phase 220V, speed 8 rpm
ZRMX-MX6	Three-phase synchronous motor model	220×160×230 (mm)	Three-phase synchronous motor model, input three-phase voltage 380V, speed 500-800 rpm
ZRMX-MX7	X165MM three-phase stepper motor model	320×220×270 (mm)	Three-phase stepper motor model, input power supply 220V, speed 8 revolutions per minute
ZRMX-MX8	DC generator model	350×320×260 (mm)	DC generator model, output voltage 6.3V-3V
ZRMX-MX9	Three-phase alternator model	350×320×260 (mm)	Input AC voltage 220V, output voltage 3V
ZRMX-MX10	Mine explosion-proof motor model	280×200×230(mm)	Mine explosion-proof motor model, input three-phase voltage 380V, speed 500-800 rpm
ZRMX-MX11	160 type permanent magnet generator model	350×320×260 (mm)	160 type permanent magnet generator model, output 6.3V
ZRMX-MX12	DC motor model	350×220×250 (mm)	DC motor model, input DC 220V, speed 500--800 rpm
ZRMX-MX13	Three-phase asynchronous deep slot squirrel cage motor model	260×200×230 (mm)	Three-phase asynchronous deep slot squirrel cage motor model, input three-phase voltage 380V, speed 600-800 rpm
ZRMX-MX14	Three-phase asynchronous double-slot squirrel-cage motor model	260×200×230 (mm)	Three-phase asynchronous double-slot squirrel-cage motor model, input three-phase voltage 380V, speed 600-800 rpm
ZRMX-MX15	Generation and variable speed model of rotating magnetic field	230×200×230(mm)	Generation and variable speed model of rotating magnetic field, input three-phase voltage 380V, speed 400-800 rpm
ZRMX-MX16	Silicon rectifier generator model	350×320×260 (mm)	Silicon rectifier generator model, input three-phase voltage 220V, output voltage 3V
ZRMX-MX17	Three-phase current and rotating magnetic field demonstrator	230×200×260 (mm)	Three-phase current and rotating magnetic field demonstrator, input three-phase voltage 380V, speed 600 rpm 800 rpm
ZRMX-MX18	Single phase speed regulating motor model	320×230×230(mm)	Single-phase speed-adjustable motor model, input AC 200V, speed 300-500 rpm
ZRMX-MX19	Rotor-powered AC synchronous motor model	260×200×230 (mm)	Rotor-powered AC synchronous motor model, input three-phase low voltage 380V, speed 500-800 rpm
ZRMX-MX20	Cup Rotor AC Serving Motor Model	260×220×230 (mm)	Cup-shaped rotor AC servo motor model, input AC 220V, speed 500-800 rpm
ZRMX-MX21	Self-aligning motor model (transmitter)	320×220×230 (mm)	Self-aligning motor model "Transmitter", input AC 220V, speed 600-800 rpm, output AC 24V
ZRMX-MX22	Self-aligning motor model (receiver)	320×220×260 (mm)	Self-aligning motor model "receiver", receiving voltage 24V, speed 600-800 rpm
ZRMX-MX23	Single/three-phase transformer model	700×500×700(mm)	Input 380V, output 24V
ZRMX-MX24	Three-phase salient pole motor model	280×200×230(mm)	Input three-phase low voltage 380V, speed 500-800 rpm
ZRMX-MX25	DC permanent magnet motor model	350×200×230 (mm)	Input single- phase voltage 220V, speed 500-800 rpm
