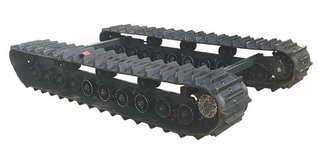

Rubber crawler chassis training device

1. The track uses construction machinery type with good driving performance. The branches and guide wheels use deep groove ball bearings, and the one -time coffee lubrication is used to avoid m--ntenance and m--ntenance in the use.

2. Drive the gear adopt alloy steel and quench, good abrasion resistance; the chassis is equipped with a planetary gear box and inserted hydraulic motor.

3. There are rotary stations and rotary motors.

Technical specification

1. Long: 1250mm; width: 1200mm; height: 300mm;

2. Tied width: 200mm;

3. Guide wheel and drive wheel distance: 950mm;

4. Load: 1T

1. Principles, uses and characteristics:



The whirlwind dust collector uses the flow speed of the dust -cont--ning gas to make the --r flow move in a cert--n direction in the dust removal device in a cert--n direction. The particles obt--n centrifugal force in the rotation of the --rflow, causing the particles to be separated from the --rflow. The whirlwind dust collector has the advantages of simple structure, low cost, and convenient equipment m--ntenance and rep--r, and can be used for purification of dust -cont--ning smoke, and it can also be recovered with valuable dust. This experimental system is m--nly used to demonstrate the principle of the whirlwind dust removal process.



2. M--n technical parameters and indicators:



1. Wee volume: 300 ~ 700m3/h;



2. Entry gas dust concentration: <50g/ m3



3. Dustering efficiency: 70%~ 80%;



4. Pressure drop: <2000Pa;



5. Device shape size: 1800mm wide 450mm height 1600mm,



6. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, power of 1500W; safety protection: ground protection, leakage protection, overcurrent protection;

7. Installation of power lines and control lines: It is necessary to use environmentally friendly flame retardant electrical wiring grooves to standardize and organize the characteristics of national standards. It has the characteristics of insulation. The wiring is neat and reliable.



3. M--n configuration:



1. 1 set of whirlwind dust collectors, transparent organic glass materials, 8mm wall thickness, and device with unloading dust removal;



2. One set of organic glass dust automatic feeding devices: vertical feed;

3. 1 set of dust static mixer: use box static mixer;

4. 1 U -shaped pressure meter, 2 groups of manual monitoring of import and export, 2 groups of pressure rings, and 1 batch of transparent pressure measuring hoses;
