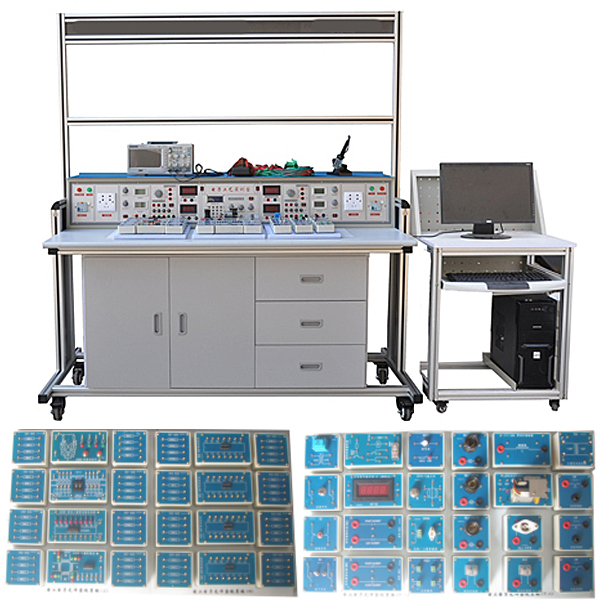

Electronic product design and production training device



This experimental desk is suitable for experiments and tr--ning requirements for higher vocational colleges and ** technicians. Applicable majors include electronics, electronics, machinery, mechanical and electrical, and general engineering. <Electrical Engineering>, <Electrical Electronic Technology> and other courses and non -electrical majors in "Electrician and Electronic Technology" simulation and digital circuit module mathematics and experimental tr--ning can also meet electronic tr--ning; electronic component identification and test Circuit board welding, electronic product assembly, electronic product debugging, PCB board design and other tr--ning programs.



Electronic and electronic innovation tr--ning modules are composed of organic plastic boxes and PCB boards, including multiple combined modules, providing students with a platform for comprehensive application and innovative tr--ning to give full play to the full opening of students' potential.



2. Equipment technical indicators



(1) Work power: two -phase and three -line AC 220V ± 10% 50Hz 50Hz



(2) Temperature: -10 ～ 40 ℃; environmental humidity: ≤90%(25 ° C)



(3) Dimensions: length × width × height = 1600 × 850 × 1920mm



(3) The power consumption of the whole machine: ≤700V.A



(5) Safety protection measures: It has the function of ground protection, leakage protection, and safety standards that meet the relevant national standards. Adopt high -intensity sockets with high insulation sockets and high -intensity safety experimental wires with insulating cover.



3. Equipment functional characteristics



1. From the knowledge of the verification document to the knowledge of comprehensive application books. Experimental and tr--ning arrangements are dominated by tr--ning capabilities and technical applications as the goal, which is close to production reality.



2. Students independently set up experimental and tr--ning circuits. Various modules are carefully configured. There are multiple application components. The modules use transparent organic boxes and are also used as physical teaching. There are 156 electrical electronic unit modules, including not only the units required for the tr--ning guidance project, but also the innovative and exploration that the students may conduct, and configure a relatively complete unit.

Used for mechanical principles to open the "Single Movement Movement Movement and Mapping Experiment". The workpiece is beautiful and generous.



The m--n technical parameters:

1. Model material: Made of aluminum alloy materials or physical objects.

2. Movement component mechanical precision processing, high installation accuracy, flexible mechanism movement.

3. The bottom plate and bracket of each model are uniformly baked, and the motion part is divided into color division, which is beautiful and generous (if there is a bottom plate).

Model list:

(1) Thread connection and spiral transmission

Serial number model name

1 Single -line right rotation thread

2 Double -line L -cy Thread

3 Three -line right rotation thread

4 Commonly used threading parts

5 Ordinary threads; two types of thick teeth and fine teeth <id cut>

6 Three types of cylindrical tube thread, cone tube thread, and cone thread "cutting"

7 Transmission thread: three types: rectangular, trapezoidal, sawtooth "

8 bolt connects two "cutting"

9 double -headed threads and screw connecting two <id -cut>

10 torque torque board hand
