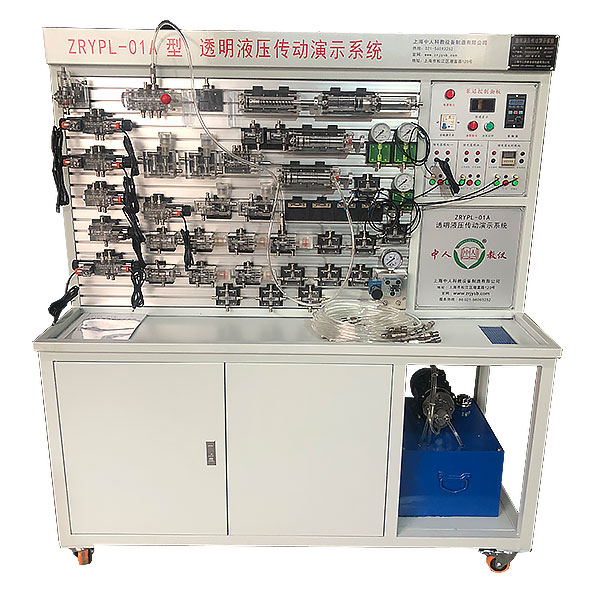

Transparent hydraulic transmission experiment table



1. Power: AC220V 50Hz



2. DC power supply: Input AC220V output DC24V/2A



3. Hydraulic experimental oil pump motor power: 250W, equipped with a special motor speed regulator, speed regulating range: 0-1700R/min



4. At the experimental work, the noise of 1.5m far away from the hydraulic experimental desk ≤58dB.



5. Experimental oil circuit fluid flow pressure requires 0.5-1MPa (oil pump ** pressure: PMAX = 2.5MPa)



6. Electromagnetic direction valve: DC24V suction 30n



7. Experimental table appearance Size: 1330mm × 650mm × 1750mm



8. Virtual multi -purpose table parameters:



AC voltage voltage range gear division: 10, 50, 2050, 1000



DC voltage gear division: 0.25, 1, 2.5, 10, 50, 250, 1000



Om file points: X1, X10, 100, 1000, 1k, 1K, X10K, X100K



Current meter gear: 50μA, 0.5, 5, 50, 500



BATT: 1.2-3.6V, RL = 12Ω



Buzz: R × 3



Infrared launch detection function: vertical angle ± 15 ° distance 1-30cm



Triode measurement hole



2. M--n features



1. The transparent hydraulic transmission demonstration system consists of components such as experimental tables, experimental desks, hydraulic components, and electrical control devices.



2. The experimental table and the experimental desk are iron double -layer sub -light -dense -densely spraying structures, and hydraulic components are stored in the experimental desk.

I. Overview:

** M--ntenance electrical tr--ning platform is designed in accordance with the requirements of "Workers Level Standards" and "Vocational Skills Appr--sal" issued by the Ministry of Labor and Social Security. *Electric control lines required by the textbooks for m--ntenance of the electrical industry, through the tr--ning of the PLC programming controller and frequency conversion speed regulator and the corresponding tr--ning module equipped with the device, quickly master the actual application techniques and operating skills required by the curriculum, which is targeted, practical Sex, scientific and advanced nature, it can meet the requirements of technicians technology and the outline of the assessment of the middle and ** m--ntenance of the electrician m--ntenance. equipment.

2. Device characteristics:

1. Electrical control line components are installed on the installation board as a hanging board. It is convenient to operate, replace it conveniently, facilitates the expansion function or develop new tr--ning. The choice of operation content is typical and practical;

2. The operating table only requires a three -phase and four -line AC power supply, which can be put into use;

3. Control lines for skill tr--ning and small motors that are specially designed can simulate the technical requirements of various electrical drag systems in the factory, and can meet the installation, debugging, fault analysis and exclusion of m--ntenance electricians;

4. The device has voltage and current leakage protectors to ensure the safety of the operator's life;

5. All components are led to the wiring terminal through the wire. Students only need to be wirled on the terminal when the student wiring is conducive to protecting components;

6. Wiring through the wire grooves for process wiring tr--ning.
