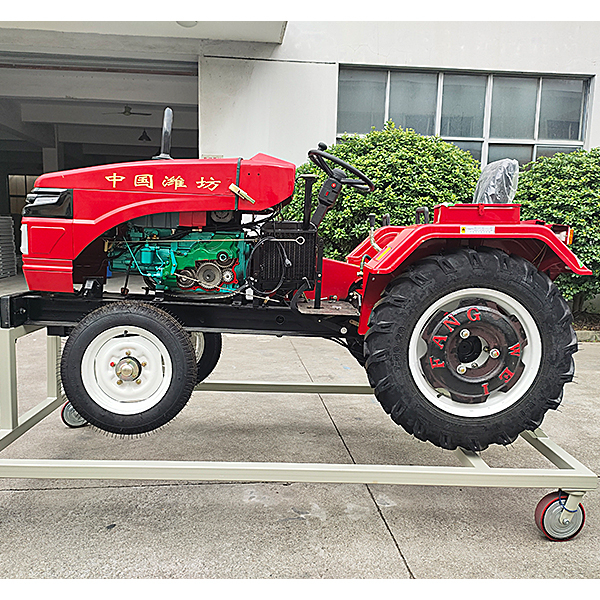

Track anatomy teaching training device

one. Features

1. The principles and structure display of each system of the tractor.

2. Specify motor driving engine, dynamically demonstrate power drive and drive system work process.

3. Electrical systems work normally, dynamic demonstration electrical systems.

4. Each total of the key parts of the anatomical dissection, coating different colors, highlight the structure level.

5. Support for instructions and tr--ning guidance.

6. Machinery assembly and fitter assembly virtual simulation software:

This software is developed based on Unity3D. It can choose level 6 image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, typical mechanical mechanisms (virtual disassembly of gasoline engine engines) The software is an overall software that cannot be separated by separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

The turbine sn--l tapered gear reducer: automatically play the assembly content after entering the software. Each step in the video has text description

Second -level unfolding cylindrical gear reducer: After entering the software, use the video to play content in the form of video. The video content should include: the name of the parts (scanning the QR code can see the part of the parts), the disassembly presentation (including disassembly, assembly), virtual disassembly Installation (including overall, low -speed shaft, mid -speed axis, high -speed shaft, box cover, box seat)

The heat exchanger is a very commonly used equipment for chemical enterprises, allowing enterprise practitioners to understand the structure, learn to m--nt--n, and disassemble. Therefore, we choose a typical tube heat exchanger for students to master the internal structure, disassembling operation, test pressure checking system operation, and understanding the high -pressure cleaning of the column tube heat exchanger for the internal structure, disassembly operation, and test pressure check. Knowledge of inspection and m--ntenance operation processes such as pipes and leakage.

1. System composition

The heat exchanger disassembling and m--ntenance tr--ning device consists of a column tube heat exchanger, disassembly tool, a leakage tool, shelves, disassembly platform, hand -pier car, etc.

Second, system function

1. Make students understand the structure of the heating shift of the typical fixed pipeline pipe tube of chemical devices. At the same time, the Graphic display board of the U -shaped tube heat exchanger, floating header heat exchanger, and wing tube heat exchanger is used to master the internal structure of different types of heat exchangers.

2. Examine the degree of familiarity with students in the internal structure of the heat exchanger, the degree of knowledge of the safety inspection of chemical equipment and the level of skills.

3. Make students understand the common methods of cleaning the heat exchanger: mechanical treatment, washing and chemical cleaning.

4. Make students master the operating safety operation procedures for the tube tube heat exchangers, shell test pressure, leakage, and leakage.

5. Machinery tr--ning Safety Education Virtual Simulation Software: This software is developed based on Unity3D. The software uses a three -dimensional roaming form. It can control the movement through the keyboard. Basic assessment of the protection design. During the experiment, the three -dimensional roaming screen uses arrows and footprint patterns to move to the experimental location. The circle around the mechanical object shows a working radius. The experimental process is accompanied by a three -dimensional robot dialog box reminder.

A. Mechanical safety distance experiment content includes a safe distance experiment to prevent the upper and lower limbs from touching the dangerous area (the height and opening of the two fences in the inside). After choosing to enter, the GB23821-2009 "Mechanical Security to prevent the upper and lower limbs from touching the dangerous area of the dangerous area. "Safety distance" requires that the error demonstration: After the experimental process is harmed by the working radius of the human body entering the mechanical object, the blood color picture and voice reminder receive mechanical damage, return to the original position and perform the next experiment. The final step is the correct practice. Essence
