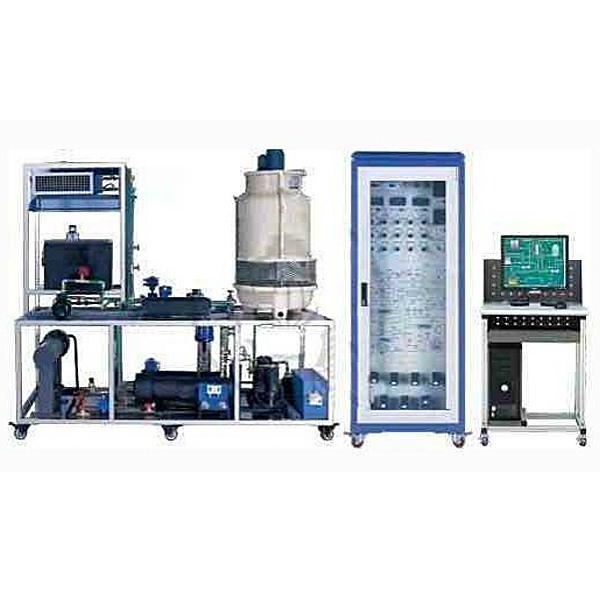

Refrigence air -conditioning refrigeration training device

Ice -storage cold --r conditioner uses the night trough load power to store ice storage in the ice -storage device. During the day melting ice to release the stored cold amount, reducing the power load and --r conditioning system installed capacity of the power grid during the peak period of the power grid. The direction of development. This tr--ning device is a new tr--ning equipment developed and designed based on the practical teaching of "Refrigeration and *r Conditioning System Principles, Engineering Design and Application" and "Energy Storage *r Conditioning Technology and its Development". The entire device adopts a direct evaporation ice system. The system is m--nly composed of refrigeration units, ice storage devices, --r -conditioning ending devices, --r -conditioning circulating water pumps, ethylene glycol pumps, and refrigerant (ethylene glycol aqueous solution). Suitable for tr--ning and teaching of related courses such as --r -conditioning engineering, building environment and equipment engineering.

2. Features

1. This installation adopts a real cooling --r -conditioning component at the industrial site, which is in line with the actual application;

2. Cooling and --r conditioning system can form three operating conditions: cooling operation, cold supply -cold operation and conventional --r conditioning operation;

3. This device will directly evaporate the combination of ice storage cold storage, refrigerant internal ice and cold, and large temperature difference over -cooling organic combination.

4. The system structure is simple and compact, cold and cold, and flexible and effective control.

3. Technical performance

1. Input power supply: single -phase three -line ～ 220V ± 10% 50Hz 50Hz

2. Working environment: temperature -10 ℃ ～+40 ℃; relative humidity <85%(25 ℃); altitude <4000m

1. Introduction to the experimental table:

The pump-cylinder driving closed hydraulic system uses a closed pump to control the oil cylinder. It cont--ns the m--n circuit and the oil replenishment circuit. Treatment of pollution to the environment. Pump control technology that is lost without d--ly currents, through changing the speed or displacement of the pump, fully match the pump output flow and pressure and load requirements.

2. Features:

1. Pump-cylinder-driven closed hydraulic system cont--ns the m--n circuit and the oil replenishment circuit.

2. The m--n circuit is included as a variable closed plunger pump, control valve, dual -effect symmetrical double -out hydraulic cylinder, pressure sensor, displacement sensor, force sensor, flow sensor, etc. The road connection forms a circular circuit, and the control valve is set between the oil cylinder and the safety valve

3. The oil replenishment circuit cont--ns fuel tanks, fuel pumps, filters, capacitors, safety valves, pressure sensors, flow sensors, etc.

4. The experimental table is the upper and lower layers of the overall type, the fuel tank is placed, and the operation platform is placed, consisting of cast iron T -shaped tablets.

3. Technical parameters:

1) Enter power supply voltage: three -line and five -line AC380V ± 10% 50Hz;

2) Module and component DC voltage: DC24V, 4.5A, with automatic short -circuit protection functions;

3) Control voltage: safe control voltage -DC24V;

4) Use environment: temperature -10 ℃ ~+40 ℃ relative humidity <85%(25 ℃) altitude <4000m (dustproof and moisture);
