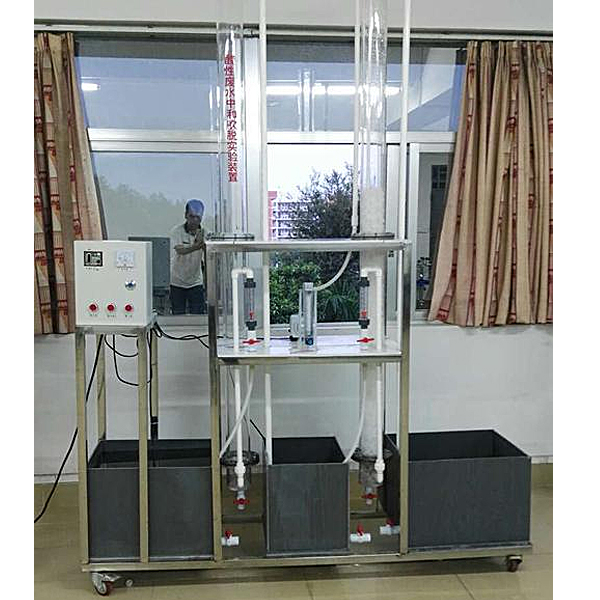

Acidal wastewater variable speed and tower training device



Many industrial wastewater often cont--n acidic substances, and the pH value of the discharged wastewater should be between 6-9, so acidic wastewater should be treated with neutralization. When the neutral agent is particles, the form of filtration is often used to fully contact the acidic wastewater and neutral agent, so that the pH of the wastewater to the neutrality. This experimental device is an experimental device that uses the acidic wastewater in the filter and the method of acidic wastewater.



Through the direct observation of organic glass devices, we can clearly understand the work of the neutralization of the structure inside the tower, the flow of wastewater flow and neutralizer. Master the principle of acid -base neutralization, understand the relationship between filtering speed and acidic wastewater, and pH outlets.



2. M--n technical indicators and parameters:



1 Environmental temperature: 5 ℃ ～ 40 ℃



2. Acid waste water in the industry cannot be discharged directly. The tapered organic glass tower is used, and white clouds or carbon stones (it is alkaline). When acidic wastewater is passed, it will neutralize the response. The water outlet requires the pH value of 6 or more to meet the emission standard.



3. The rising flow rate of wastewater can reach 40-70m/h



4. Treatment of water: 250 ～ 500L/h



5. Dimensions of shape: 100mm in diameter at the bottom of the cone -shaped



6. The upper diameter is 300mm



7. Height 1300mm



8. Device shape size: 900 mm × 500 mm × 2100mm



9. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 370W power, safety protection: ground protection, leakage protection, overcurrent protection

Purpose:

Through the voltage adjustment of the heating element, the phenomenon of the upflow of the rising tube in the water circulation of the boiler water and the plug of the surrender pipe observes the flow of soda -shaped, bomb -like, and columnar.

M--n configuration:

The upper pot (visual), the lower episode box, the glass ascending pipe, and the glass descending pipe of the simulation industrial boiler, the electric heating device around the glass ascending pipe, heating the control switch group, the integrated regulating module regulate the current voltage, the current table, Voltage, st--nless steel brackets, etc.

Technical Parameters:

1. Input power supply: single phase AC220V ± 10% 50Hz, power of 3.0kW.

2. The system is composed of five quartz glass rising pipes, three quartz glass descending pipes, one upper pot, and a lower box.

3. Each rising tube is wrapped around a heating heat wire with a rated power of 500W, and the input voltage is adjusted through the corresponding electronic pressure regulator.

4, shape size: 1100 × 500 × 1700mm, the shape is st--nless steel moving bracket with a double brake wheel.

5. Building building and smart building electrical installation virtual simulation software

Based on the UNITY3D design, users choose different interactive interface size based on the computer configuration. The software in the software can be rotated, magnified, reduced, and translated at 360 °. There are small assistant tips for software use, the content is as follows:

A. Wet alarm system

1. System summary: Overview of Wet Alarm System

2. Equipment cognition: there are ** perspectives, equipment det--ls (displayed or parameters of the device), practice (built -in 6 selection questions, there are prompts for correctness and errors), schematic diagrams (can be entered from the schematic diagram Go to the device). The equipment includes: nozzle, water flow indicator, signal butterfly valve, exhaust valve, fire alarm control, executive pressure gauge, high water tank, Weia control cabinet, stabilization tank, flow switch, end -end water testing device, dr--nage facility, water pump combinations, water pump combination Instruments, hydraulic bells, latencys, wet alarms, butterfly valves, stop valves, fire pumps, safe stabilization valves, fire pools.
