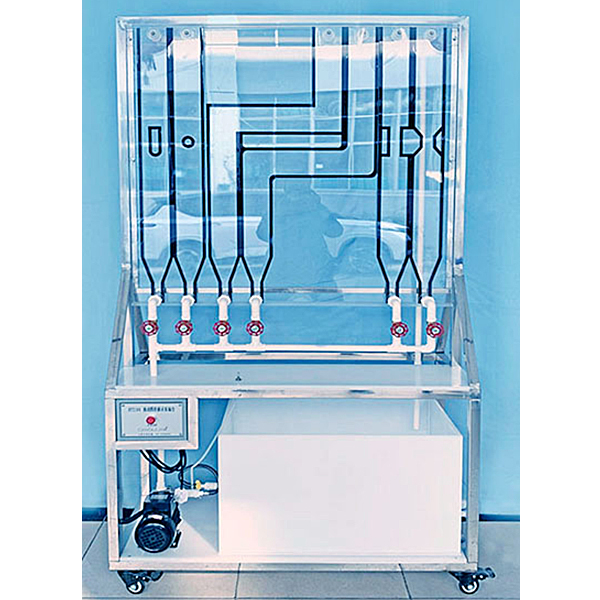

Self -loop vortex experimental device

1. Operating environment: temperature 0-40 ° C, relative humidity: ≤90%RH, power source: 220V/50Hz, can be continuously operated.

2. Water storage tank, 400 × 400 × 400mm, material PVC board.

3. Water pump: ** Obstate: 35m, rated flow: 3.0m3/h, power: 550W.

4. Hand -controlled flow regulating valve, two -way configuration LED pan -flat plane light source, organic glass flow channel, color organic glass body, display screen, sub -light black rear cover, adjustable gas doping device.

5. The frame and countertop are made of 304 st--nless steel. The structure is compact, beautiful in appearance, and convenient to operate.

6. Dimensions: 800 × 450 × 1800mm (length × width × height), the frame is a mobile design, with a foot wheel and imprisoned feet.
