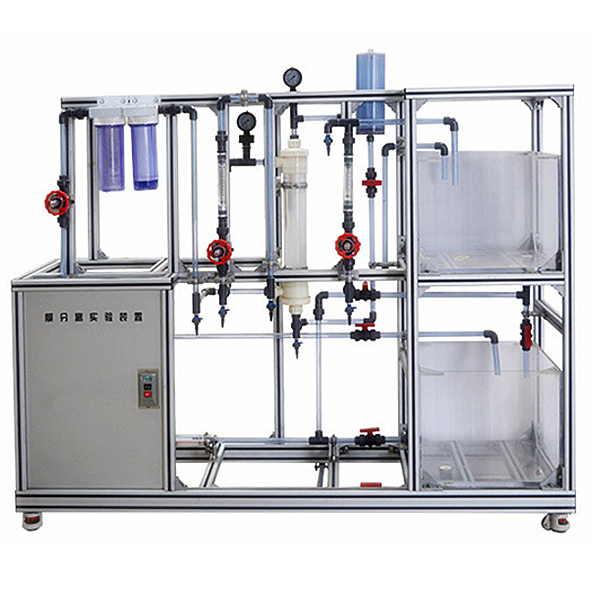

Ultrafilled membrane separation experimental device

1. Membrane separation efficiency measurement; understand the separation process process of membrane separation.

2. Through the discounting membrane component, further understand the internal structure of the membrane component.

3. Measure the relationship between the removal rate of salt (solution) and operating pressure.

M--n configuration:

Washing pool, filter tank, water pump, ultrafiltration component, pressure gauge, liquid flow meter, high -quality aluminum alloy profile framework.

public facilities:

Water: The device comes with a water tank and connects tap water. During the experiment, the water tank was pumped into the system and was used by the cycle.

Electric: voltage AC220V, power 1.0kW, standard single -phase three -line system. Each laboratory needs to be configured with 1-2 connection locations (safe and signaling).

Experimental materials: tap water or polyethylene glycol, outer equipment: spectrophotic meter

Technical Parameters:

1. Operating environment: temperature 0-40 ° C, relative humidity: ≤90%RH, power supply: voltage 220V; power 370W.

2. Ultrafilled membrane components: Polyetry fiber in polypropylene, pores: 0.01-0.3 μm, pore rate: 50%-55%, interception molecular weight: 50,000, can achieve sterile filtration. Use temperature: 44 ℃ -73 ℃; ** Work pressure: 4kg/cm2.

3. activated carbon filter: Specification: φ100 × 400mm, the filter medium is activated carbon.

4. Lighting tank: 60L, 304 st--nless steel. Washing pool: 60L, 304 st--nless steel.

5. Water pump: st--nless steel centrifugal pump, flow: 1m3/h, r--sing: 30m, power: 370W.

I. Overview

In order to adapt to the teaching content of multiple hydraulic oil circuits within a short class time. At the same time, comparing the working principles of multiple different oil circuits. Moreover, the necessary procedures for the installation and commissioning of the oil circuit system do not take up the teaching time. There must be multiple equipment to work at the same time.

At the same time, when the Chinese ZryPl-01D four-in-one transparent hydraulic transmission demonstration system conducts one of the experimental experiments, 80% of the transparent hydraulic element is idle. The system, on the premise of increasing and ensuring experimental items and functions, according to the principles of different demonstration experiments during the same lesson, effectively uses transparent hydraulic elements to optimize combinations to reduce the performance price of the product by 40%.

2. Features

1. Compared with multiple different experimental circuits to deepen the understanding of the principle of hydraulic circuit.

2. Many tables can be operated at the same time and running different circuits.

3. You can only need a set of hydraulic components to form different circuits at the same time to save component resources.

4. Preparation of hydraulic components: Each hydraulic element is equipped with a installation bottom plate, which can be convenient and randomly placed on the aluminum alloy panel (the panel with the structure of aluminum alloy profile in the form of the "T" groove). The oil circuit is overlapped with a fast conversion. It is convenient for disassembly and does not leak oil.

5. Electrical control is simple, convenient and easy to do. Electrical control is performed with an independent relay control unit.

6. The experimental table and the experimental table are iron double -layer sub -optical dense -densely spraying structures, and hydraulic components are stored in the experimental table and cabinet.
