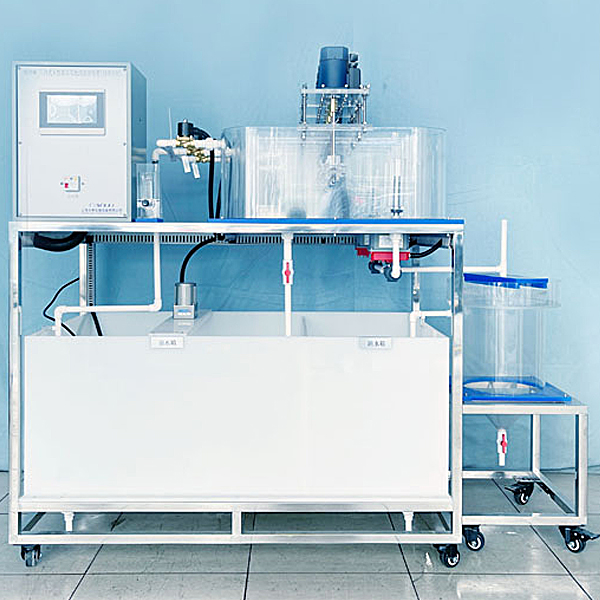

Urban sewage treatment oxidation ditch training device

When the oxidation groove is used to treat urban sewage, the first sedimentation tank may not be provided. The suspended organic matter can be oxygen and stable in the oxidation groove. This is more economical than setting up a sludge stability system for setting up a sedimentation tank and a separate device. However, in order to prevent the accumulation of inorganic sediment in the oxidation groove, the original sewage should be pre -processed by the grille and the sand pool. Oxidation sulcus structure and process process. This device is a teaching experimental equipment for oxidation grooves. Through the hope of this experiment, the following goals are achieved:

1. Master the internal structure of the oxide groove;

2. Understand the hydraulic characteristics, hydraulic flow and process characteristics of oxidation grooves.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 40 ℃

2. Treatment of water: 10L/H,

3. Device shape size: 950mm × 430mm × 430mm

4. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, 200W power, safety protection: have ground protection, leakage protection, overcurrent protection, protection,

3. M--n configuration:

1. 1 original water tank: white PP plate material, 10mm thick, 400 × 400 × 500mm, empty valve installed on the bottom plate, which is convenient for cleaning the water;

2. 1 water tank: white PP plate material, 10mm thick, 250 × 350 × 500mm, empty valve is installed on the bottom plate, which is convenient for cleaning the water;

3. 1 set of paddles from the original water tank mixing motor, 304 st--nless steel mixing paddle; (power 25W, speed 120rpm), (including 1 tone speeder)

4. 1 set of single sulcus oxidation grooves, transparent and organic glass materials, wall thickness 10mm, 600 × 350 × 350mm, aeration device

5. Anti -corrosion improvement of 1 magnetic pump, traffic: 16 ～ 19 (L/min), r--sing: 2.7 ～ 3.4 (m) power 20W;

6. 1 aeration motor, 304 st--nless steel impeller aeration device; (power 90W, speed 2900rpm), (including 1 tone speeder),

7. Traffic measurement and adjustment: 1 rotor flow meter, (6 ～ 60L/ h)
