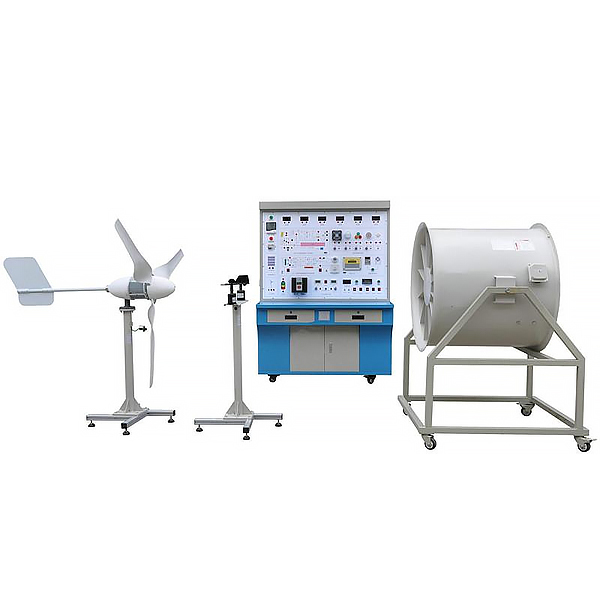

Wind power generation system principle experimental device

Wind power generation teaching experiment system is composed of seven units systems for power generation unit, charging unit, power storage unit, inverter module, control unit, carrier unit, and display unit. The research and tr--ning and teaching of universities and graduate students based on wind power -based subjects.

Characteristics

The system experimental platform integrates indoor temperature/humidity meter, and the wind speed measurement system makes users operate more intuitive.

The system adopts digital DSP technology to fully manage the battery filling and discharge power.

The system panel uses intuitive digital instruments and liquid crystal display, allowing users to understand the system working status in real time.

The power supply on the system can provide users with AC 110V/220V pure sine wave AC power.

Wind power generation teaching experiment system can allow tr--ning students to disassemble and move themselves, use simple, energy -saving and environmental protection, and pollution -free.

Increase the principle of distributed power generation and experimental modules, so that students will increase their understanding of new knowledge

2. System operation technical conditions

1. Wind system

Wind wheel diameter: 1.65 (m)

Start wind speed: 1.5 (m/s)

The rated wind speed: 12 (m/s)

Safety wind speed: 35 (m/s)

Work form: upper -style permanent magnet synchronous generator

Wind leaves rotation direction: clockwise

1. Experimental project:

1. Typical mechanical transmission assembly tr--ning and performance test experiments.

2. Architecture tr--ning and performance test experiments of new mechanical transmission devices.

3. Incorporate tr--ning and performance test experiments by the transmission system.

4. Optimize design experiments for mechanical transmission schemes.

5. Design experiment of mechanical transmission creative combination.

There are 7 types of single transmission projects; 42 types of two -level transmission projects; 210 types of three -level transmission projects; 4 -level transmission solutions, totaling 259.

2. Basic structure: The working platform mechanical part consists of tablets, cabinets, and transmission modules; the transmission module consists of motor, magnetic powder loader, bearing support, str--ght tooth cylindrical gear transmission, oblique cylindrical gear transmission, garden cone gear transmission, worm, worm Top ten modules such as transmission, V -shaped transmission, synchronous transmission, and roller ch--n transmission are made of high -quality cold -rolled steel plates made of sheet metal; the plate is made of high -quality 45 steel, and the tablet is based on the composition of each transmission module. , The T -shaped tank for milling is connected. The motor uses DC servo motor. The motor is connected by the bearing seat and installed on the tablet. It is used as a loader with a magnetic powder brake.

1. M--n parts:

(1) 900 × 480mm tablets (with cabinets): 1 set;

(2) Motor component: 1 set;

(3) brake component: 1 set;

(4) Bearing support components: 2 sets;

(5) Str--ght tooth cylindrical gear transmission component: 1 set;

(6) Slip gear transmission component: 1 set;

(7) Conevant gear transmission component: 1 set;
